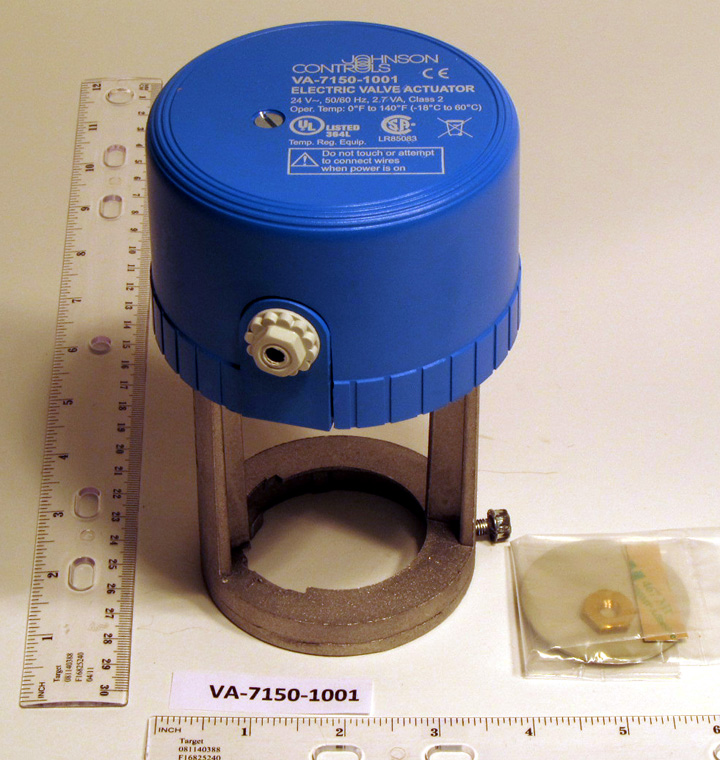

Johnson Controls VA-7150-1001 Three-Wire Incremental Electric Valve Actuator 90 lb 24V Non-Spring Return

The Johnson Controls VA-7150-1001 is a synchronous motor-driven electric valve actuator from the VA-715x Series, designed for three-wire incremental (floating) control of valves in heating, ventilating, and air conditioning (HVAC) applications. This non-spring return actuator delivers a minimum of 90 lb (400 N) of force output and supports up to 3/4 in. valve stroke, making it a versatile solution for a wide range of building automation and HVAC control applications. It replaces the earlier VA-7150-8001.

Key Features:

• Magnetic Clutch: Provides constant output force for positive closeoff of valves and protects the motor in stall conditions
• 90 lb Force Output in a Compact Unit: Covers a wide range of applications with a single actuator
• Unique Yoke Design: Enables easy field mounting to valves, reducing installation and stroke adjustment time
• Selectable Direct/Reverse Action: Simplifies setup and installation without additional hardware
• Durable Construction: Engineered for longer cycle life in demanding commercial HVAC environments
• NEMA 1 / IP40 Enclosure: Suitable for indoor installations
• UL Listed and CE Marked: Meets applicable safety and regulatory standards

Specifications:

• Control Type: Three-Wire Incremental (Floating), On/Off
• Operation: Non-Spring Return
• Input Voltage: 24 VAC (20–30 VAC), 50/60 Hz
• Power Consumption: 2.7 VA nominal
• Force Output: 90 lb (400 N) minimum
• Max Stroke: 25/32 in. (approximately 3/4 in.)
• Valve Stem Connection: 1/4-28 UNF-2B thread
• Wiring Terminals: Screw terminals, 24–14 AWG
• Enclosure Rating: NEMA 1, IP40
• Dimensions: 3.84 in. diameter x 6.06 in. height
• Ambient Operating Range: 0°F to 140°F (-18°C to 60°C), 10–90% RH non-condensing
• Approvals: UL Listed (File E27734), CE
• Replaces: VA-7150-8001

The VA-7150-1001 can be easily field mounted or ordered factory-coupled to VT Series terminal unit valves, VG7000 Series valves, or VBC Series bronze cage trim valves. It is also compatible with 1/2 in. flare valves with appropriate accessories. This actuator is a trusted choice for building automation systems (BAS) and commercial HVAC valve control.
