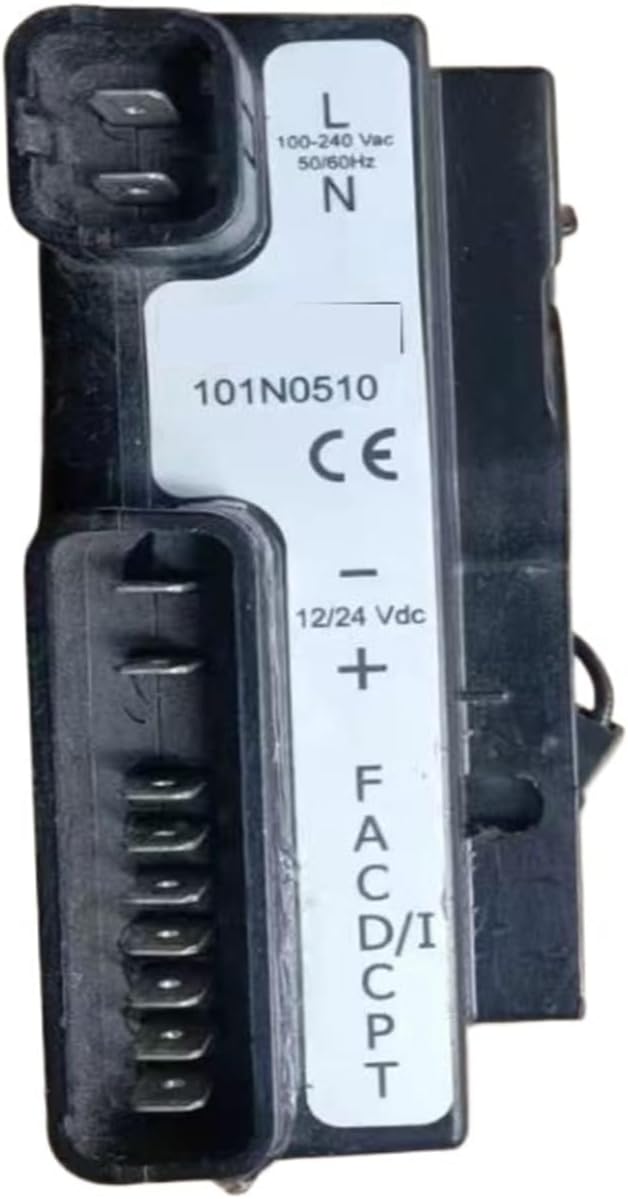

Danfoss 101N0510 Electronic Controller Module for BD35F BD50F Compressors

The Danfoss 101N0510 is an advanced electronic controller module designed specifically for use with Secop BD35F and BD50F variable speed compressors. This multivoltage unit provides versatile power options for refrigeration systems in RVs, marine applications, portable coolers, and commercial refrigeration.

Multivoltage Power Options:

• Dual DC voltage: 12V/24V DC (Maximum 17V for 12V systems, 31.5V for 24V systems)
• Universal AC voltage: 100-240V AC 50/60Hz (Operating range: 85V-265V AC)
• Automatic voltage detection and switching

Advanced Control Features:

• Variable speed motor control for precise temperature regulation
• Integrated thermostat control (ON/OFF or electronic via NTC sensor)
• ECO function to optimize compressor speed for minimum power consumption
• Fan control capability
• Battery protection functions for DC applications
• Built-in thermal protection (maximum ambient temperature: 55°C)
• Error LED and monitoring function with error/event log
• Communication interface for diagnostic software

Compatibility and Installation:

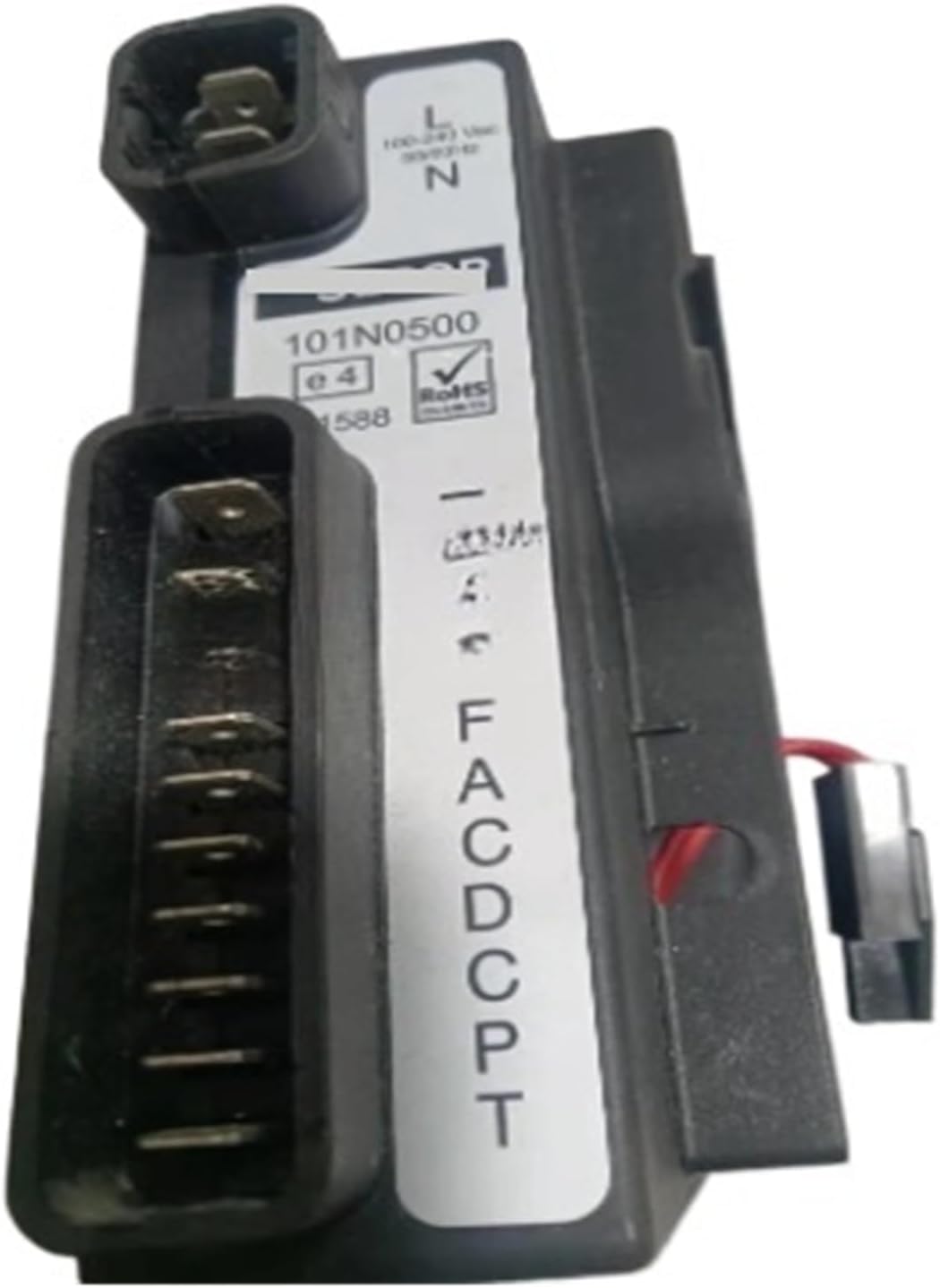

This controller is compatible with Danfoss/Secop BD35F and BD50F compressors and works with various refrigeration brands including Vitrifrigo, Nova Kool, Dometic Waeco, Norcold, and ARB. The 101N0510 is the updated replacement for the 101N0500 with identical specifications and mounting. Also cross-references to Vitrifrigo part number R101097, Dometic 4441000039, and Isotherm SEG00030GA.

The compact integrated design allows for easy installation in tight spaces while providing reliable compressor control and enhanced energy efficiency for both mobile and stationary cooling applications.
