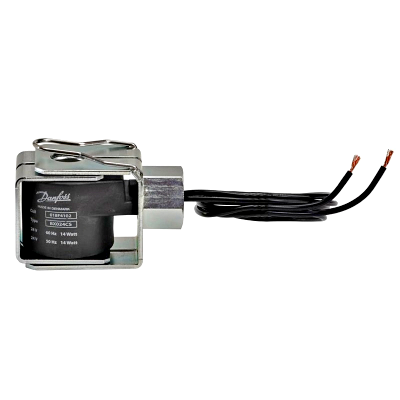

Danfoss 018F4104 BX Series Solenoid Coil 24V AC with Conduit Hub

The Danfoss 018F4104 (BX024CS) is a general purpose solenoid coil designed for use with Danfoss solenoid valves in refrigeration, HVAC, and fluid control applications. This coil features a convenient clip-on mounting system for quick installation and replacement without disassembling the valve body.

Key Specifications:

• Supply voltage: 24V AC, 50/60 Hz
• Power consumption: 14 watts
• Actuator size: 13.5mm
• Electrical connection: 1/2 inch conduit hub with flying leads
• Lead length: 98 inches (2.5 meters)
• Enclosure rating: IP54 (NEMA 4)
• Ambient temperature range: -40°F to 120°F (-40°C to 50°C)

Features:

• Clip-on coil design allows for easy replacement without valve disassembly
• Class H insulation for reliable operation in demanding environments
• UL 429 compliant with C-UL-US listing
• External metal frame construction for durability
• Compatible with Danfoss EV210B, EV215B, EV220B, EV225B, EV245B, and EV250B valve series

This solenoid coil is part of Danfoss's extensive coil program, which allows for maximum flexibility by ordering valves and coils separately to create the optimal combination for your specific application needs.
