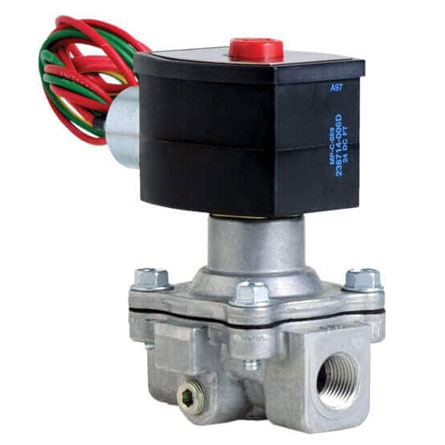

ASCO 8215C53 Normally Open Solenoid Valve 1 Inch NPT 120V

The ASCO 8215C53 is a 2-way, normally open solenoid valve designed for reliable control of air, natural gas, and inert gas flow in industrial and commercial applications. Part of the proven 8215 Series, this pilot-operated valve features a rugged aluminum body construction with brass internal components for long-lasting durability and corrosion resistance.

Key Features:

• 1-inch NPT female inlet and outlet ports with 1-5/8 inch orifice diameter
• Normally open operation - valve remains open when de-energized, closes when energized
• 120V/60Hz AC power configuration (110V/50Hz compatible)
• Operating pressure range: 0-25 PSI differential at 125°F
• Maximum temperature rating: 180°F
• Aluminum body with brass trim and stainless steel internal components
• Manual override feature for operational flexibility
• UL listed for general purpose use
• Class F coil insulation, 15.4W power consumption

The ASCO 8215C53 is ideal for pneumatic conveying systems, air compressors, gas lines, and various industrial control applications. Its normally open design provides fail-safe operation in applications where flow must continue during power loss. The lightweight aluminum construction combined with efficient power management makes this valve an economical choice for low-pressure gas control applications.
