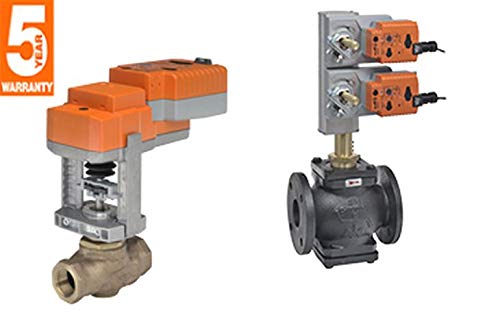

Belimo G765+RVB24-MFT 2.5" 3-Way Mixing Globe Valve with Actuator

The Belimo G765+RVB24-MFT is a complete 2.5-inch flanged globe valve assembly featuring an integrated RVB24-MFT electronic actuator. This 3-way mixing valve configuration is designed for precise proportional control of hot water, chilled water, or steam in commercial HVAC applications including air handling units, unit ventilators, and hydronic heating and cooling systems.

Valve Specifications:

• Valve size: 2.5 inches (DN65)
• Configuration: 3-way mixing
• Flow coefficient (Cv): 68
• Connection type: ANSI Class 125 flanged
• Body material: Bronze or cast iron construction

RVB24-MFT Actuator Features:

• Operating voltage: AC/DC 24V (19.2-28.8V AC / 21.6-28.8V DC)
• Actuating force: 1010 lbf (4500 N)
• Control type: Non-spring return (non-fail-safe)
• Control signal: 2-10V DC proportional (MFT/programmable)
• Power consumption: 6W operating, 1.5W at rest
• Transformer sizing: 11 VA
• Ambient temperature range: -22°F to 122°F (-30°C to 50°C)
• Enclosure rating: NEMA 2 / IP54
• Electrical connection: 18 AWG plenum cable with 1/2" NPT conduit connector

Advanced Control Capabilities:

• MFT (Multifunctional Technology) allows programmable functionality
• Electronic overload protection throughout full stroke
• Suitable for floating point, on/off, or proportional control applications
• Compatible with 4-20mA control signals using optional ZG-R01 resistor
• Actuators may be connected in parallel for zone control

This factory-assembled valve and actuator combination ensures optimal performance and simplified installation. The RVB24-MFT actuator is double-insulated and cULus certified, meeting safety standards without requiring an electrical ground connection. Ideal for building automation systems requiring reliable, maintenance-free operation in commercial HVAC applications.
