Johnson Controls VG1241CP+923BUA NPT Ball Valve with Spring-Return Electric Actuator - 1

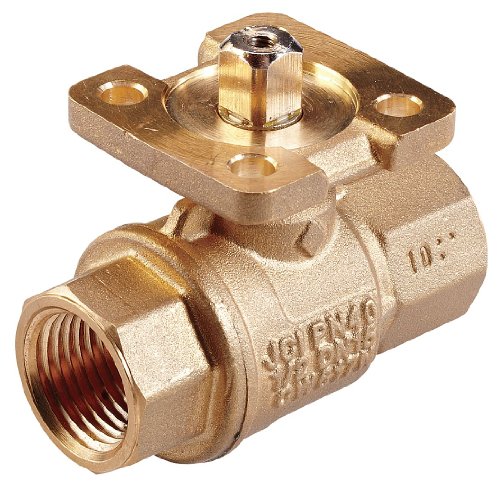

The Johnson Controls VG1241CP+923BUA is a complete valve and actuator assembly designed for precise two-position control in commercial HVAC applications. This assembly combines a VG1241CP 1-inch two-way ball valve with a VA9203-BUA-2 spring-return electric actuator for reliable on/off control of water, glycol solutions, and other compatible fluids.

Valve Specifications:

• 1-inch NPT threaded end connections for easy installation
• Two-way plated brass trim construction for durability and corrosion resistance
• Flow coefficient (Cv) of 18.7 for efficient flow control
• Ball valve design provides tight shutoff and minimal pressure drop

Actuator Features:

• Model VA9203-BUA-2 spring-return actuator with fail-safe open operation
• Universal voltage input: 85-264 VAC for flexible installation
• Two-position control (open/closed) for simple on/off applications
• Spring-return mechanism ensures valve returns to open position on power failure
• Factory-assembled and tested for reliable operation

This valve and actuator combination is ideal for chilled water systems, hot water heating, and other hydronic applications requiring automatic two-position control with fail-safe open functionality. The compact design and pre-wired configuration simplify installation and reduce field labor costs.
