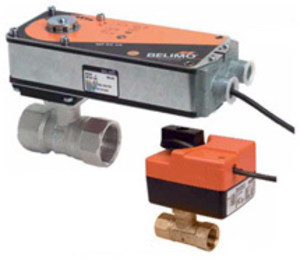

Belimo B209B+LF24-S 1/2" NPT 2-Way Ball Valve Assembly with Spring Return Actuator

Manufacturer

Part Number

B209B+LF24-S
Sale Price

$367.99

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B209B+LF24-S is a factory-assembled 2-way characterized control valve (CCV) combined with an LF24-S spring return actuator, designed for on/off control of hot or chilled water in HVAC applications. This compact assembly features a 1/2" NPT connection with chrome-plated brass trim and delivers a flow coefficient (Cv) of 0.8, providing approximately 1.6 GPM at 4 psi differential pressure.

Key Features:

  • 2-way ball valve with equal percentage flow characteristic for precise control
  • Spring return actuator with 35 in-lb (4 Nm) torque for fail-safe operation
  • 24 VAC/DC power supply with low power consumption (5W running, 2.5W holding)
  • Built-in SPDT auxiliary switch (3A @ 250V) for safety interfacing or signaling
  • 2-position on/off control with spring return to fail-safe position
  • Chrome-plated brass valve body and trim for durability
  • Female NPT threaded connections for easy installation
  • IP54/NEMA 2 environmental protection rating
  • Running time: 75 seconds motor, less than 25 seconds spring return

The Belimo B2 Series valve assembly is ideal for air handling units, fan coil units, VAV box reheat coils, unit ventilators, and bypass loops in hydronic systems. The characterized control valve design provides comparable Cv values to globe valves while preventing control loop hunting, enhancing system stability and optimizing energy consumption. Compatible with chilled or hot water systems, including up to 60% glycol solutions.
