Johnson Controls CTD-C1G00-1 Split-Core Current Transducer 4-20mA Multi-Range 30/60/120A

Manufacturer

Part Number

CTD-C1G00-1
Sale Price

$119.97

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

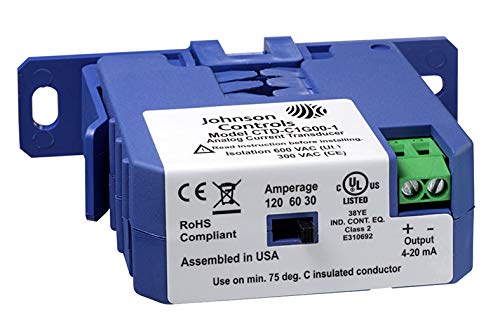

The Johnson Controls CTD-C1G00-1 is a split/clamped-core analog output current transducer designed to non-intrusively monitor AC current flowing through a cable or wire. Part of the CTD Series, this device delivers a standard 4 to 20 mA current loop output signal and features a selectable multi-range input of 30A, 60A, or 120A, making it adaptable to a wide range of HVAC and building automation applications.

The split-core design eliminates the need to disconnect existing wiring during installation—simply clamp the transducer around the conductor. Foot mounting holes are included for secure panel or surface mounting.

Key Features:

  • Split/Clamped Core Design — Non-intrusive installation without interrupting live circuits
  • Multi-Range Input — Selectable 30A / 60A / 120A current range via onboard jumper or switch
  • 4 to 20 mA Analog Output — Industry-standard current loop signal compatible with most BAS/BMS controllers and PLCs
  • Loop Supply Voltage — 24V AC/DC; requires an external 24 VDC / 25 mA power supply
  • Rated Insulation Voltage — 600V AC for safe use on line-voltage conductors
  • Input Frequency — Compatible with 50 Hz and 60 Hz systems
  • Foot Mounting Holes — Included for flexible installation options
  • UL Listed — File E310692, CCN NRNT7; certified under CAN/CSA C22.2 No. 14-05

Typical Applications:

  • Monitoring current loads on pumps, fans, and blowers
  • Sensing operational status of heating coils and lighting circuits
  • Proof-of-operation monitoring for HVAC equipment
  • Load trending and predictive maintenance programs in building automation systems

Optional command relays (models CR-01200-0 and CR-02400-0) are available separately and provide externally controlled auxiliary contacts for switching higher-power loads when used alongside this transducer.

Specifications:

  • MPN: CTD-C1G00-1
  • Output Signal: 4 to 20 mA
  • Current Range: 30 / 60 / 120 A (selectable)
  • Loop Supply: 24V AC/DC
  • Rated Insulation: 600V AC
  • Input Frequency: 50/60 Hz
  • Height: 2.72 in. (69.1 mm)
  • Width: 2.56 in. (65.1 mm)
  • Length/Depth: 1.06 in. (26.9 mm)
  • Hole Diameter: 23/32 x 13/16 in.
  • Certifications: UL Listed, CAN/CSA C22.2 No. 14-05
