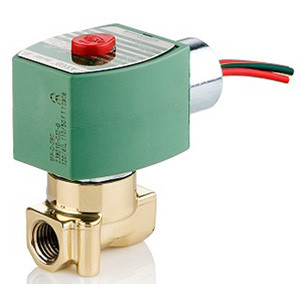

Asco 8262H261-24V 2-Way Normally Open Solenoid Valve 1/4 Inch NPT Brass 24VDC

The Asco 8262H261-24V is a direct-acting 2-way normally open solenoid valve from the renowned RedHat Series 8262 line. This general service valve features a rugged brass body construction and operates on 24VDC power, making it ideal for a wide range of commercial and industrial fluid control applications.

Key Specifications:

• Port Size: 1/4 inch NPT female threaded connections (FPT x FPT)
• Voltage: 24VDC with 10.1 watt power consumption
• Orifice: 3/32 inch with 0.21 Cv flow coefficient
• Pressure Rating: 160 PSI (air/inert gas), 135 PSI (water), 95 PSI (light oil)
• Enclosure: NEMA 1/2/3/3S/4/4X rated for versatile installation environments
• Seal Material: NBR (Nitrile Butadiene Rubber) elastomer

Features and Benefits:

• Normally Open operation: valve is open when de-energized, closes when electrically energized
• Direct-acting design provides reliable operation without minimum pressure requirements
• Welded core tube construction for higher pressure ratings and durability
• Small poppet valve design ensures tight shutoff when energized
• Can be mounted in any position for installation flexibility
• Tapped mounting holes in body for secure installation
• Compatible with air, inert gas, water, and light oil media

The ASCO 8262 Series has proven reliability in applications including car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, and various industrial automation systems. The 24VDC voltage makes it particularly suitable for integration with PLCs and low-voltage control systems.
