Johnson Controls MP823C001A Pneumatic Valve Actuator Stroke Spring Return HVAC Control Valves & Actuators - 3/4

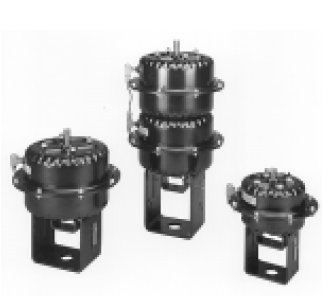

The Johnson Controls MP823C001A is a pneumatic valve actuator from the MP8000 Series, designed for reliable HVAC control applications. This spring return actuator provides precise modulating control of dampers and valves in commercial building automation systems.

Key Specifications:

• Effective area: 25 square inches
• Stroke length: 3/4 inch
• Operating pressure range: 3 to 7 psig
• Spring return up action for fail-safe operation
• Includes MP8000-6702 mounting kit for easy installation

The spring return design ensures the actuator automatically returns to its home position upon loss of air pressure, providing reliable fail-safe functionality. The 25 square inch effective area delivers sufficient force for controlling a wide range of valve and damper sizes, while the compact design allows for installation in space-constrained mechanical rooms and air handling units.

This actuator is compatible with standard pneumatic control systems and integrates seamlessly with Johnson Controls building automation controllers for precise temperature and airflow control.
