Browning VPS-210 Pillow Block Ball Bearing 5/8" Bore 2-Bolt Setscrew Cast Iron

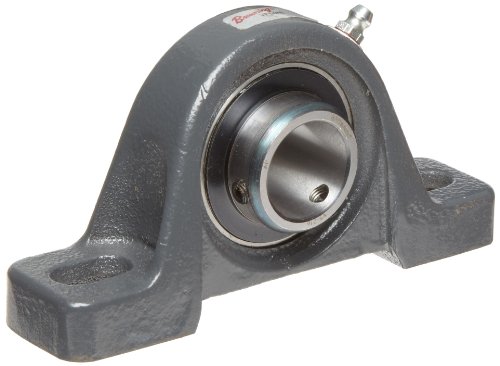

The Browning VPS-210 is a two-bolt pillow block ball bearing (mounted bearing) with a 5/8" bore and a cast iron housing. It locks to the shaft with setscrews and has a single lip contact seal with a flinger. It is part of the Browning VPS 200 series, a standard-duty line for general power transmission and conveyor applications.

Key Features:

• Powder-coated epoxy cast iron housing with a 2-bolt base
• 5/8" straight bore with setscrew locking. The setscrews are diamond-faceted and spaced 120° apart on a zone-hardened inner ring.
• Single lip contact seal with flinger to keep contaminants out
• 52100 bearing steel insert with a black oxide inner ring
• Non-expansion (fixed) bearing design
• Self-aligning to ±1.5° (static only)
• Greased with lithium complex NLGI 2 grease

Specifications:

• Bore diameter: 5/8" (0.625")
• Base to bore centerline: 1-3/16" (1.1875")
• Bolt size: 3/8"
• Overall length: 4.875"
• Overall height: 2.219"
• Base width: 1.219"
• Radial dynamic load capacity: 2,108 lbf
• Radial static load capacity: 1,117 lbf
• Maximum speed: 7,500 rpm
• Maximum operating temperature: 200°F
• Replacement insert: VS-210

This pillow block bearing is a good choice for replacing or maintaining fans, blowers, conveyors, and other light-to-medium duty rotating equipment. It is also sold as a mounted ball bearing unit or setscrew pillow block.
