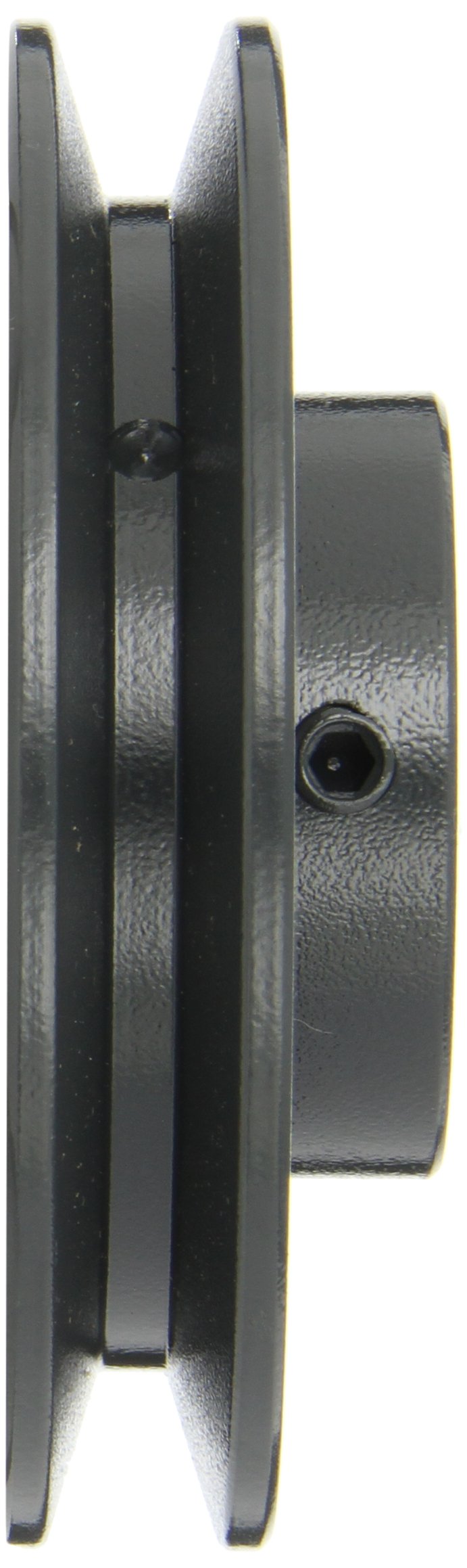

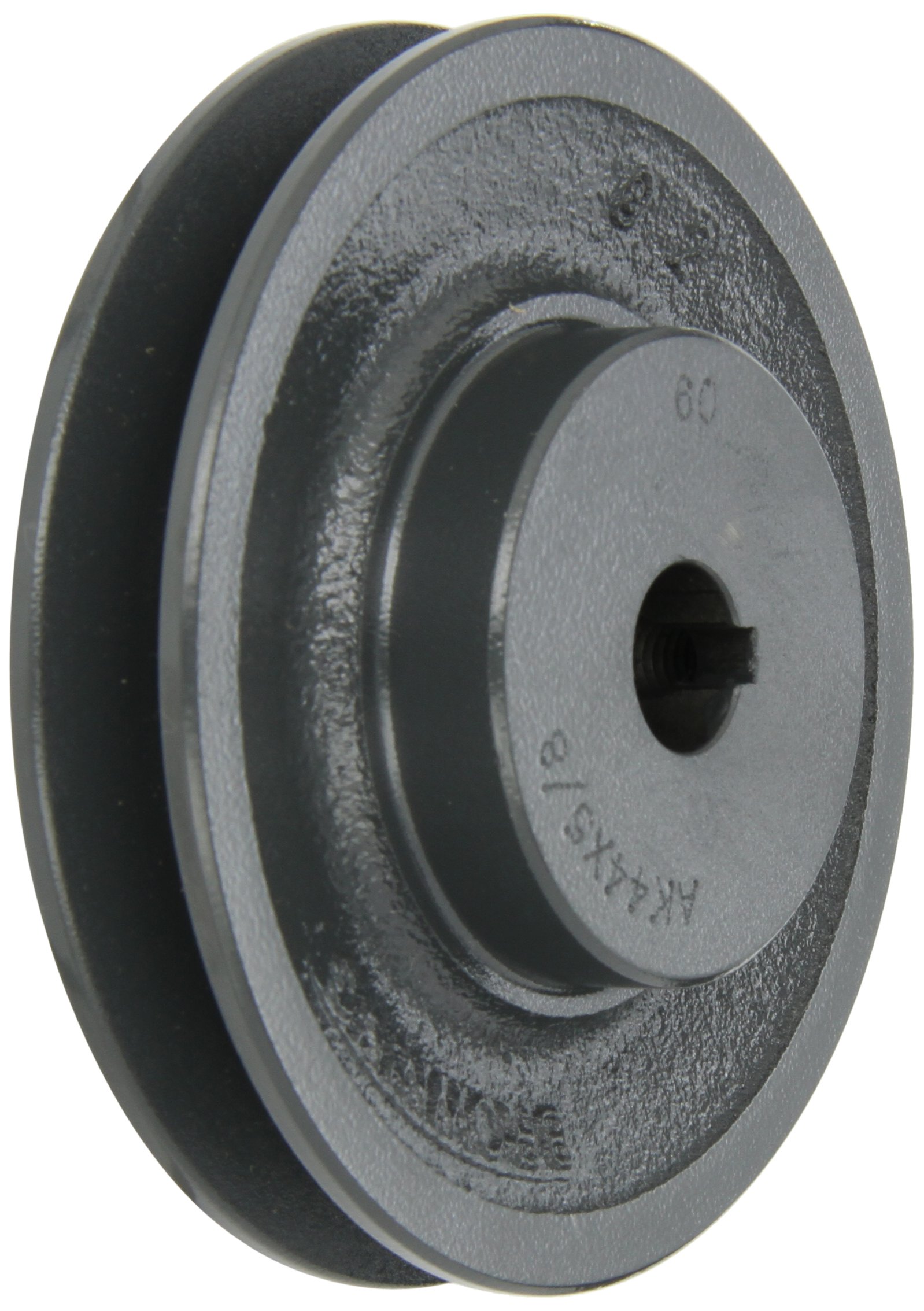

Browning AK44X5/8 Single Groove V-Belt Sheave 5/8" Bore 3L/A Belt

The Browning AK44X5/8 is a finished bore single groove V-belt sheave designed for reliable power transmission in industrial and agricultural applications. This precision-manufactured pulley features a 5/8-inch finished bore ready for immediate installation on standard shafts.

Key Specifications:

• Bore Diameter: 5/8 inch (finished bore)
• Number of Grooves: 1 (single groove)
• Belt Type: 3L or A section V-belts
• Outside Diameter: 4.4 inches
• Construction: Cast iron for durability and heat dissipation
• Series: AK (light duty) sheave

Features and Benefits:

• Finished bore eliminates need for additional machining
• Precision-balanced for smooth operation and reduced vibration
• Static balanced to ensure long bearing life
• Compatible with standard 3L and A section V-belts
• Industry-standard keyway for secure shaft mounting
• Manufactured to RMA (Rubber Manufacturers Association) standards

The AK series sheaves are ideal for light-duty applications including small motors, pumps, compressors, and agricultural equipment. The cast iron construction provides excellent wear resistance and dimensional stability under normal operating temperatures.
