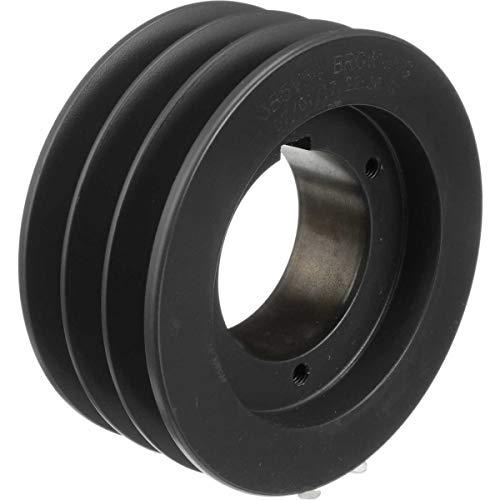

Browning 3B5V54 3-Groove Cast Iron Split Taper V-Belt Sheave, 5.68" OD, B Bushing

The Browning 3B5V54 is a fixed-pitch, 3-groove cast iron sheave (pulley) engineered for reliable, high-performance V-belt drive applications. With a 5.68" outside diameter and compatibility with A, 4L, B, 5L, and 5V belt sections, this combination-groove design offers exceptional flexibility across a wide range of industrial drive configurations.

This sheave uses the Browning Split Taper Bushing system (B bushing required, sold separately), which provides a true Key-to-Key connection between the shaft and hub for superior torque transmission and precise alignment. The split taper design also allows for quick, tool-assisted installation and removal without damaging the shaft or hub.

Key Features:

• Combination Groove Design: Accepts A, 4L, B, 5L, and 5V belt sections, offering a variety of pitch diameters and horsepower ranges in a single sheave
• Broad Horsepower Coverage: The B5V series spans 1 through 6 grooves, supporting drives from 5 to 125 horsepower
• Browning Split Taper Bushing: Delivers a true Key-to-Key drive for both shaft and hub, ensuring secure and accurate power transmission
• Advanced Cast Iron Construction: Casting geometry developed using CAD and Finite Element Analysis (FEA) for optimized material distribution and long service life
• Outside Diameter: 5.68"
• Number of Grooves: 3
• Bushing Required: B series (sold separately)
• Manufacturer Part Number: 3B5V54 | MFG Item Number: 3694205

The Browning 3B5V54 sheave is well-suited for industrial HVAC systems, compressors, fans, pumps, and other multi-belt power transmission applications where consistent speed ratios and robust construction are essential.
