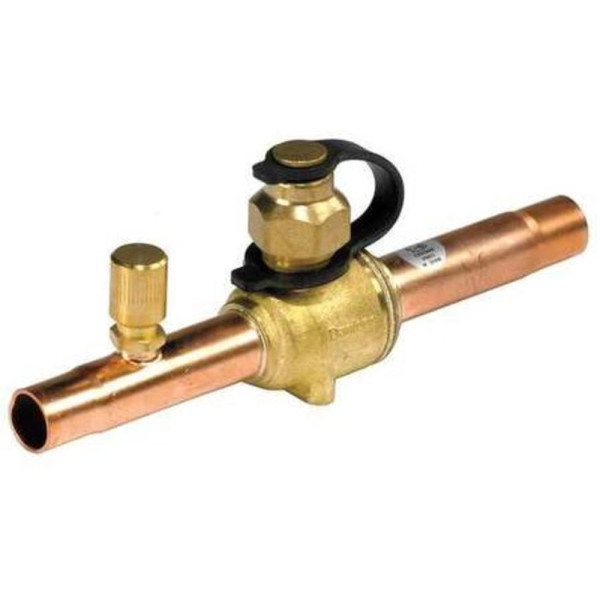

Danfoss 009L8054 ODF Ball Valve with Access Port Pipe Fitting - 3/4

The Danfoss 009L8054 is a professional-grade refrigeration ball valve designed for HVAC systems, featuring a 3/4" ODF (sweat) connection and an integrated 1/4" SAE Schrader access port. This GBC 18s series shut-off valve is manually operated for use in liquid, suction, and hot gas lines in refrigeration and air conditioning systems.

Key Features:

• Burst-proof spindle prevents liquids from being trapped internally
• Quarter-turn operation from fully open to fully closed with rotation stops at both positions
• Ball status indicator on spindle top shows open or closed position
• Double O-ring stem seal design with rupture-proof, internally-loaded spindle ensures safe operation under extreme pressures
• Bi-directional flow capability - valve orientation is unimportant
• Valve seat secures maximum tightness
• Includes seal cap with retaining strap
• Approved for R410A and multiple refrigerants
• Brass body construction for strength and durability

Technical Specifications:

• Connection Type: 3/4" ODF (Solder, Sweat)
• Maximum Working Pressure: 650 PSI
• Working Temperature Range: -40°F to 300°F
• Access Port: 1/4" SAE Schrader valve
• Model: GBC 18s

Applications:

Ideal for cold rooms, chillers, heat pumps, and transport refrigeration. The valve is specifically designed for intrinsic standstill security, meaning it can withstand pressures normally arising when the refrigeration system is shut off.

Cross References:

Replaces part numbers: 009G7054, 009L7054, 009G8054, BVE-034, 806737, BVS-034, 806757, AP17863, AQ17863, SV20B034R0000, SBV(M)-JA6YHSY-1-SA, 10150054202, 937306, 6570N/6A, BV6A.
