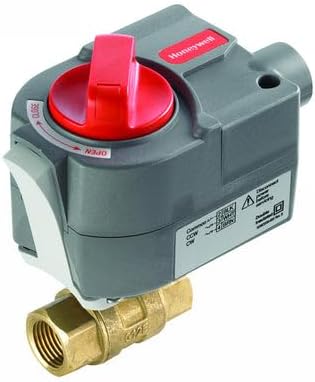

Honeywell VBN2CPPA1000 1 Inch 2-Way Threaded Control Ball Valve with 24V Floating Actuator

The Honeywell VBN2CPPA1000 is a 1 inch NPT 2-way threaded control ball valve designed for hot and chilled water applications in HVAC systems. This complete valve assembly features a forged brass body with a CV rating of 54 and comes factory-equipped with a non-spring return floating actuator for fail-in-place operation.

Key Features:

• 1 inch female NPT threaded connections for easy installation
• Flow coefficient (Cv) of 54 for precise flow control
• Equal percentage flow characteristic for accurate modulating control
• 24V floating control actuator with fail-in-place operation
• Characterized flow design reduces torque requirements
• Maximum operating pressure of 360 psi at 250°F
• ANSI Class IV seat leakage rating (0.01% of CV maximum)
• Patented low-torque seat design for reliable operation
• Removable manual operating handle for service or power failure

Applications: Ideal for heating, ventilating, and air conditioning systems requiring two-position or modulating control of water or glycol solutions up to 50%. The nickel-chrome plated brass construction ensures durability while the precision laser-cut flow control insert provides accurate equal percentage flow characteristics throughout the valve's range.

Technical Specifications: The valve operates with water or glycol solutions (up to 50%) in temperatures ranging from 32°F to 250°F. The integrated MVN series actuator provides 90-second timing with 90-degree rotational stroke, making this a complete plug-and-play solution for commercial and industrial HVAC applications.
