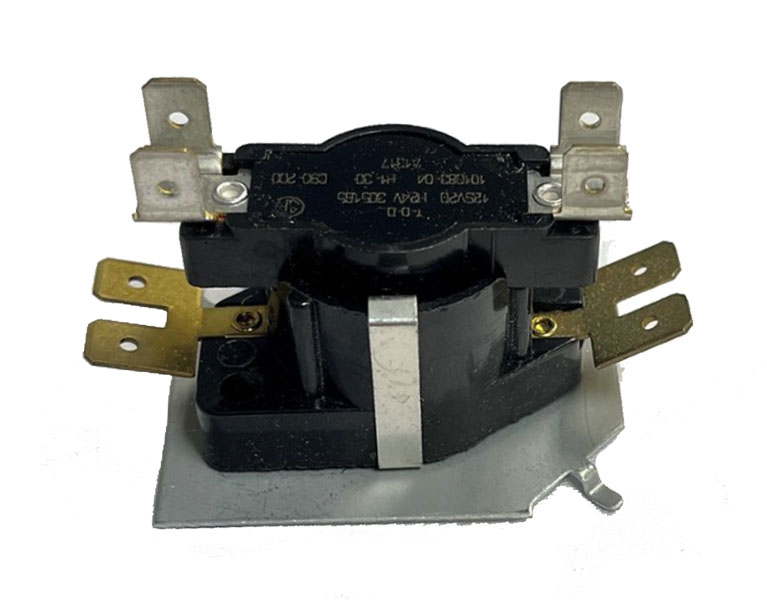

Lennox 10B96 Sequencer Relay HVAC Heating Control

The Lennox 10B96 is a heat sequencer relay designed to provide precise timing control for HVAC heating systems. This component manages the on and off cycles of heating elements and blower motors, ensuring efficient operation and preventing electrical overload.

Key Features:

• Adjustable on-delay timing: 1-30 seconds for controlled equipment start-up
• Adjustable off-delay timing: 90-200 seconds for proper cool-down periods
• Prevents excessive wear on heating elements and motors by staggering activation
• Durable construction designed for reliable long-term performance
• Direct replacement for OEM part numbers 10B9601, 101083-04, R101083-04, 92W94, and 92W9401

This sequencer relay is commonly used in Lennox electric furnaces and air handlers, as well as compatible systems from Allied Air, AirEase, Concord, and Ducane. The precise timing control reduces energy consumption by optimizing heating cycles and extends component lifespan by preventing simultaneous activation of multiple heating elements.
