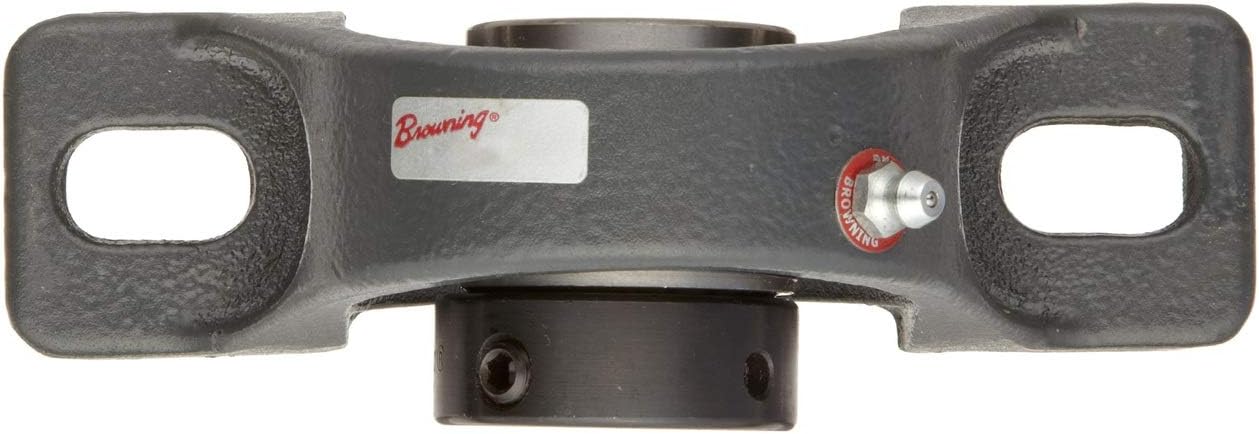

Browning VPS-222 AH Pillow Block Ball Bearing 1-3/8" Bore Two-Bolt Cast Iron

The Browning VPS-222 AH is a normal duty two-bolt pillow block ball bearing designed for air handling applications requiring quiet operation and reliable performance. This unit features a 1-3/8" (34.9mm) straight bore with set screw locking for secure shaft attachment.

Key Features:

• 52100 bearing steel construction with black oxide coated inner ring for corrosion resistance
• Powder coat epoxy cast iron housing for durability in harsh environments
• Zone hardened inner ring with 120° spacing set screw lock and diamond faceted setscrews
• Single lip contact seal with flinger for enhanced protection against contamination
• Air Handling noise check certification for quiet operation in HVAC and ventilation systems
• Looser than standard housing fit for ease of alignment on lightweight frames
• Molded fiber glass reinforced nylon ball riding retainer
• Dynamic load capacity: 5,782 lbs / Static load capacity: 3,493 lbs
• Maximum speed: 4,000 RPM
• Temperature range: 200°F to 250°F

Specifications:

• Bore diameter: 1-3/8 inches (34.9mm)
• Overall length: 6-3/4 inches (171.5mm)
• Overall height: 3-11/16 inches (93.7mm)
• Base width: 1-3/4 inches
• Base to bore centerline: 1-7/8 inches
• Bolt center-to-center: 4-9/16 to 5-7/16 inches
• Self-alignment capability: +/- 1.5 degrees

This Browning pillow block bearing is ideal for conveyors, fans, blowers, and other rotating equipment in industrial, HVAC, and material handling applications. The AH designation indicates the air handling design with specialized features for low-noise operation.
