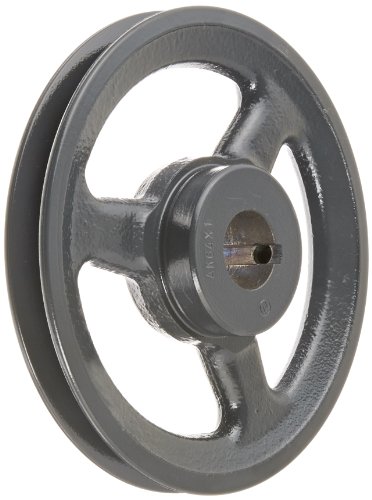

Browning AK64X1 Single Groove V-Belt Sheave Pulley, 1" Bore, 6.25" Diameter

The Browning AK64X1 is a finished bore sheave designed for light-duty power transmission applications. This single groove pulley features a 6.25-inch outside diameter and comes with a 1-inch finished bore, ready to mount on standard shafting.

Key Specifications:

• Outside Diameter: 6.25 inches
• Bore Size: 1 inch (finished bore)
• Number of Grooves: 1
• Belt Type: 3L, A, or AX profile belts
• Construction: Cast iron for durability and heat dissipation
• Finish: Black oxide coating for corrosion resistance

Features & Benefits:

• Precision-machined finished bore eliminates need for additional machining
• AK-series design provides reliable performance in HVAC, agricultural, and industrial equipment
• Single groove configuration simplifies belt alignment and tensioning
• Compatible with standard 3L and A-section v-belts for versatile applications
• Browning quality ensures long service life with minimal maintenance

The AK64 series sheaves are commonly used in compressors, pumps, fans, and other equipment requiring single belt drive systems. The finished bore design allows for quick installation with proper keyway and set screw mounting.
