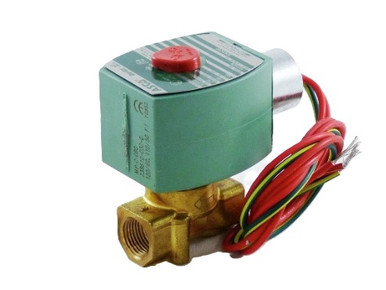

Asco 8263H200 2-Way Direct Acting Solenoid Valve 3/8" NPT Normally Closed

The Asco 8263H200 is a 2-way direct acting general service solenoid valve designed for reliable automated fluid control in commercial and industrial applications. This normally closed valve features a 3/8" NPT port with a 5/32" orifice and a Cv flow factor of 0.52, making it ideal for moderate flow applications.

Key Features:

• Operates on 120VAC/60Hz with a watt rating of 10.1/F AC or 11.6/H DC
• Durable brass body construction with NBR and Cast UR seals and discs
• 305 stainless steel core tube for enhanced reliability
• NEMA 4X rated enclosure for harsh environments
• Direct acting design requires no minimum operating pressure
• Can be mounted in any position for installation flexibility

Applications & Media Compatibility:

This valve is designed for air/inert gas, water, and light oil (up to 300 SSU) services at moderate temperatures. Maximum fluid temperature is 180°F, with standard ambient operation rated down to -13°F. The 8262/8263 Series handles a wide range of media and is suitable for applications including car wash systems, dishwashing and laundry equipment, pumps, compressors, and food processing.

Performance & Reliability:

The valve provides long service life and low internal leakage, with tight shutoff capabilities for automated fluid control applications. The 8262/8263 Series is constructed to withstand the harshest environments, delivering dependable performance day after day.
