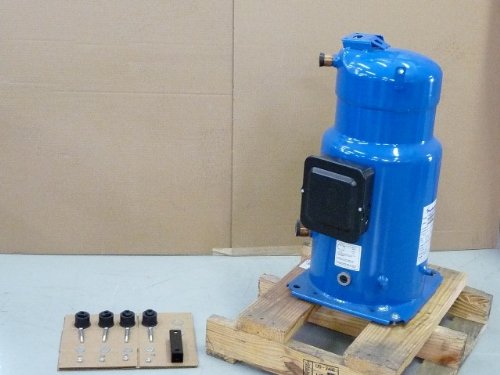

Danfoss SM185-3QAI Scroll Compressor 15 HP R-22 Refrigerant 200-230V 3-Phase

The Danfoss SM185-3QAI is a high-performance scroll compressor engineered for demanding commercial air conditioning applications. Part of the Performer series, this 15 horsepower unit delivers 185,400 BTU cooling capacity at ARI standard conditions with exceptional energy efficiency and quiet operation.

Key Specifications:

• Cooling Capacity: 185,400 BTU/hr (185,320 BTU at 45°F evaporator temperature)
• Refrigerant: R-22
• Power Supply: 200-230V, 3-Phase, 60 Hz
• Motor: 15 HP, 3500 RPM
• Suction Connection: 1-5/8" ODF
• Discharge Connection: 1-1/8" ODF
• Application: High Temperature Air Conditioning
• Compressor Type: Scroll with brazed connections

Advanced Scroll Technology:

• Precision-engineered scroll profiles with controlled orbit for frictionless operation on an oil film
• 100% suction gas cooled motor with built-in motor protection
• Floating tip seals ensure efficient axial sealing with minimal friction losses
• Large oil reserve and internal free volume for enhanced reliability and extended service life
• Optimized discharge assembly reduces noise and increases efficiency
• Precision-balanced moving parts minimize vibration
• Oil sight glass and oil equalization connector included for easy manifolding

The Danfoss SM185-3QAI combines superior performance with low sound levels and reduced vibration characteristics, making it ideal for rooftop units, packaged systems, and applied commercial HVAC equipment. Its robust construction ensures reliable operation even in demanding commercial environments.
