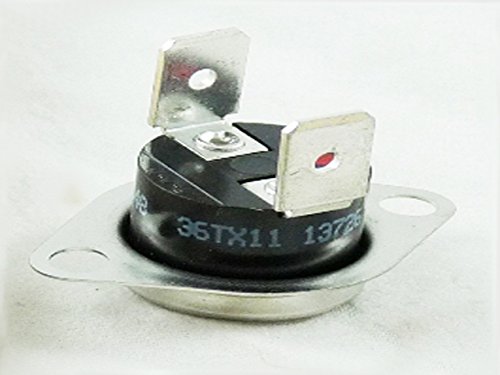

Carrier 338096-706 MAIN LIMIT SWITCH ASSEMBLY

Manufacturer

Part Number

338096-706
Black Friday Price

$22.86

3 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Carrier 338096-706 Main Limit Switch Assembly is a critical safety and control component designed for Carrier HVAC furnace systems. This genuine OEM replacement part monitors internal furnace temperatures and controls blower fan operation to ensure safe, efficient heating performance.

Key Functions:

  • Controls blower fan activation and deactivation based on temperature thresholds
  • Prevents furnace overheating by shutting down the burner when temperatures exceed safe limits
  • Ensures warm air circulation only after the heat exchanger reaches proper temperature
  • Protects critical furnace components from heat damage and potential failures
  • Features a temperature sensing probe that extends into the furnace plenum for accurate monitoring

Operation:

During normal furnace operation, this limit switch assembly monitors the plenum temperature and signals the blower to activate once the air reaches approximately 20 degrees above room temperature. This prevents cold air drafts and ensures comfortable heating. When the thermostat is satisfied, the switch allows the blower to continue running briefly to extract remaining heat from the exchanger, then shuts it down when temperatures drop to safe levels. Most importantly, if the furnace begins to overheat due to restricted airflow or other issues, the high-limit function immediately shuts off the gas valve to prevent damage to the heat exchanger and eliminate potential safety hazards.

Installation:

This assembly typically mounts to the furnace plenum with a small mounting plate on the exterior and a temperature probe that extends through the furnace housing. Located inside the furnace access panel near the heat exchanger, professional installation is recommended to ensure proper electrical connections and accurate temperature sensing for optimal system protection and performance.

Genuine Carrier OEM part ensures exact fit and reliable operation for your heating system.
