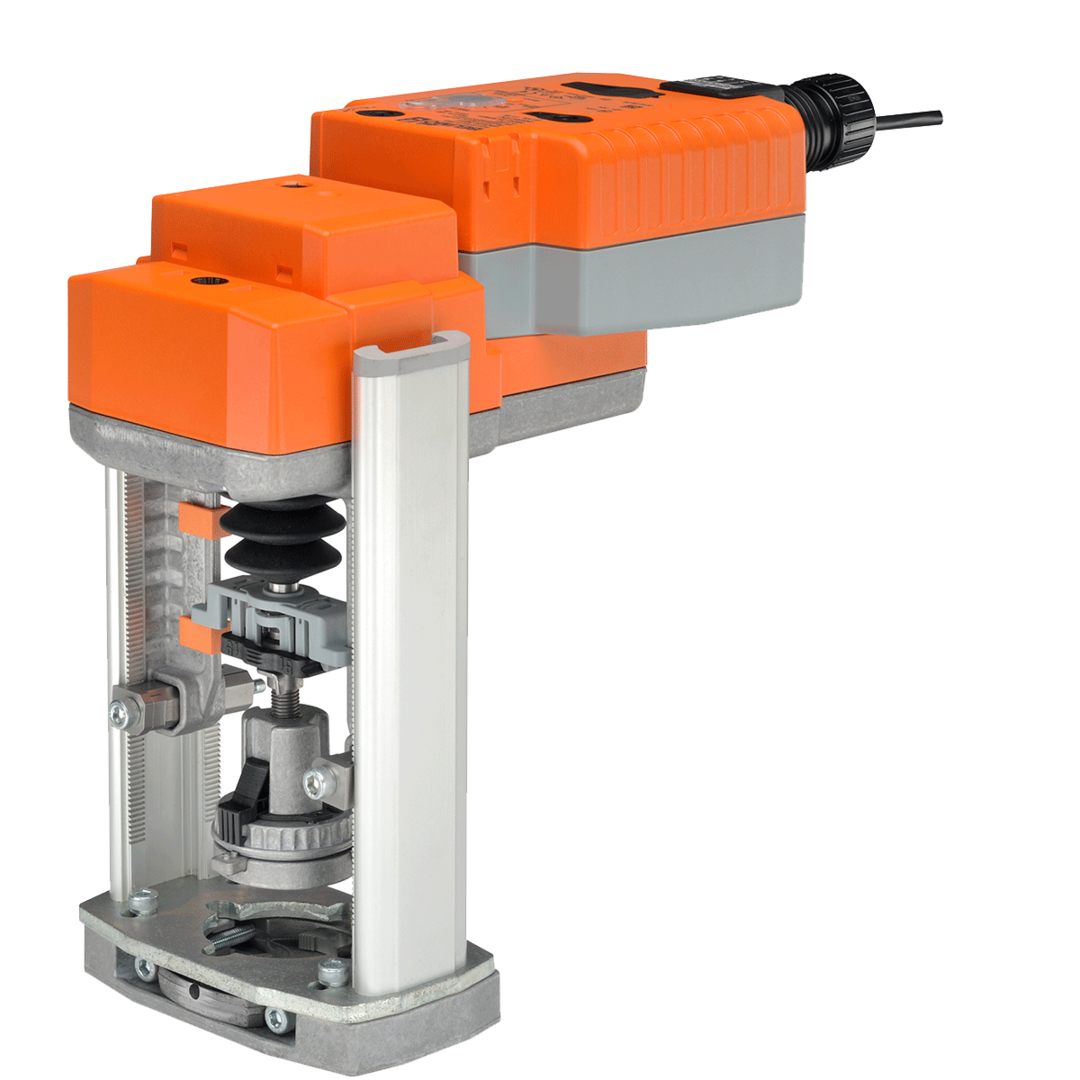

Belimo UGVL+SVKX24-SR Universal Globe Valve Retrofit Linkage with Electronic Fail-Safe Actuator

Manufacturer

Part Number

UGVL+SVKX24-SR
Sale Price

$765.72

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo UGVL+SVKX24-SR is a universal retrofit valve linkage system designed to easily attach LV and SV series actuators to most globe valves on the market. This complete assembly combines the UGVL universal linkage with the SVKX24-SR electronic fail-safe modulating actuator, providing a versatile solution for HVAC hot water, chilled water, and steam control applications.

Key Features:

  • Electronic fail-safe operation with spring return for reliable safety positioning
  • 340 lbf (1500 N) actuating force for positive valve control
  • AC/DC 24V power supply with 2-10 VDC modulating control signal (also accepts 4-20 mA with optional resistor)
  • 90-second default run time, adjustable from 35 to 150 seconds for flexible application tuning
  • Fail-safe return time under 35 seconds for rapid emergency positioning
  • IP54/NEMA 2 rated enclosure for protection against dust and moisture
  • Low power consumption: 3W running, 2W holding
  • Variable stroke capability: 6 inches (15mm) for LV series, 0.75 inches (20mm) for SV series actuators
  • Universal format compatible with NPT threaded and flanged globe valves from multiple manufacturers
  • Mechanical position indication with pointer for visual verification

The UGVL retrofit linkage eliminates the need for valve replacement when upgrading control systems, saving installation time and costs. The assembly includes an 18 AWG plenum-rated cable with 1/2 inch conduit connector for easy wiring. Electronic overload protection throughout the full stroke ensures long actuator life, while double insulation meets cULus requirements without needing an electrical ground connection.
