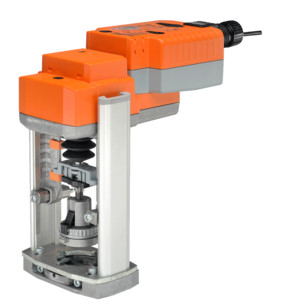

Belimo UGVL+LVKB24-SR Universal Globe Valve Retrofit Linkage with Electronic Fail-Safe Actuator

Manufacturer

Part Number

UGVL+LVKB24-SR
Sale Price

$687.62

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

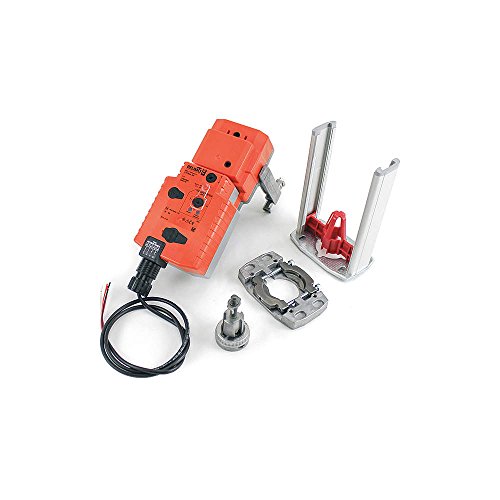

The Belimo UGVL+LVKB24-SR is a universal globe valve retrofit linkage assembly paired with an LVKB24-SR electronic fail-safe actuator, designed to provide reliable control for HVAC hot water, chilled water, and steam applications. This complete retrofit solution allows easy integration with most globe valves on the market, making it ideal for modernizing existing HVAC systems without valve replacement.

Key Specifications:

  • Actuating force: 500 N (115 lbf) for dependable valve operation
  • Operating voltage: AC/DC 24V with universal compatibility
  • Control signal: 2-10 VDC modulating input (also accepts 4-20 mA with optional ZG-R01 resistor)
  • Stroke range: 0.6 inches (15 mm) with LV series configuration
  • Running time: 90 seconds motor operation, less than 35 seconds fail-safe response
  • Power consumption: 2.5W running, 1.5W holding position
  • Enclosure rating: NEMA 2, IP54 protection for reliable performance

Features and Benefits:

  • Electronic fail-safe functionality ensures valve returns to safe position during power loss
  • Universal linkage design fits most major globe valve manufacturers
  • Selectable direction of motion with convenient switch
  • Manual override with 4mm hex crank (included) for maintenance and testing
  • 18 AWG plenum-rated cable (3 ft) with 1/2-inch conduit connector
  • Mechanical position indication with pointer for visual confirmation
  • Double-insulated construction meets cULus requirements without ground connection
  • Maintenance-free operation with electronic overload protection throughout full stroke
  • Operating temperature range: -22°F to 122°F (-30°C to 50°C)

The UGVL retrofit linkage series represents Belimo's new generation of linear globe valve solutions, offering greater power, flexibility, and ease of installation compared to older designs. The universal format eliminates the guesswork from retrofit projects, while the robust 115 lbf force rating handles demanding applications with confidence.
