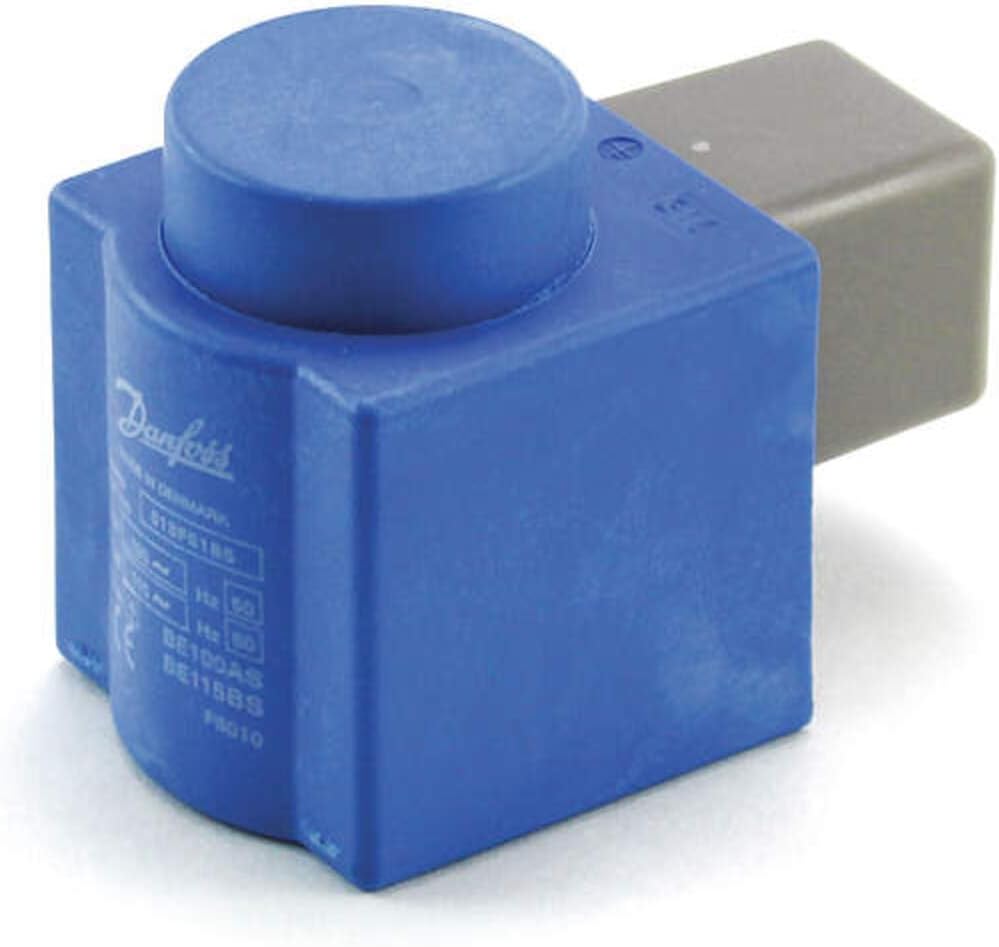

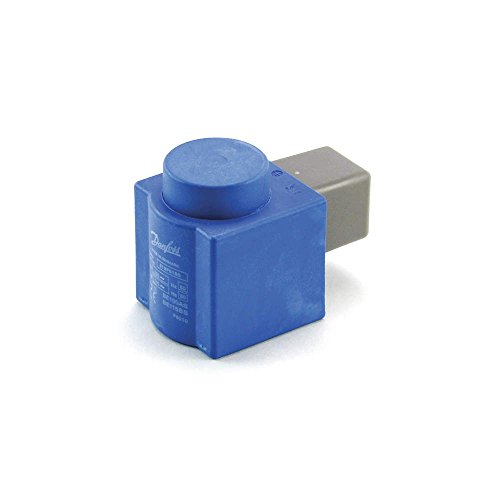

Danfoss 018F6185 BE115CS Solenoid Coil 115V 60Hz with DIN Plug and Cap

The Danfoss 018F6185 is a BE115CS type solenoid coil designed for refrigeration and air conditioning applications. This replacement coil operates at 115V AC, 60Hz and features DIN spade terminals with a protective cap for IP20 enclosure rating.

Key Features:

• Type BE115CS coil for EVR series solenoid valves
• Supply voltage: 115V AC at 60Hz (also compatible with 100V at 50Hz)
• Power consumption: 13W at 60Hz, 22VA
• DIN spade connection (6.3mm) conforming to EN175301-803 standard
• Includes protective cap to prevent contact with live parts
• IP20 enclosure rating for dry indoor environments
• 13.5mm actuator size
• Operating temperature range: -40°C to +80°C ambient
• Clip-on fastening system for tool-free installation

This coil is compatible with Danfoss EVR series solenoid valves including EVR 2 through EVR 40 (NC), EVR 6 through EVR 22 (NO), EVRH, EVRC, EVRA, EVRAT, EVRS/EVRST, and EVM (NC) models. The encapsulated design provides long operating life even under extreme temperature conditions and high humidity environments typical in refrigeration systems. The clip-on design allows quick mounting and removal with just a standard screwdriver.
