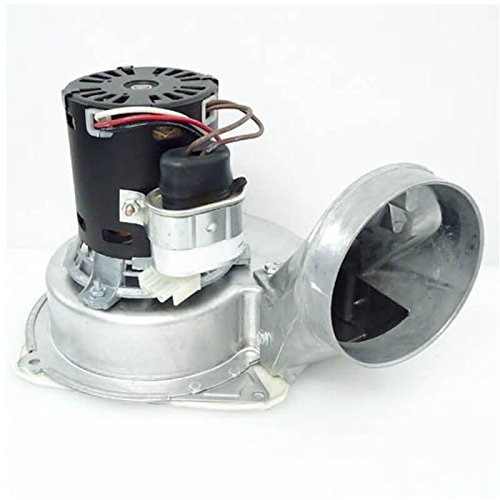

Lennox 73W09 LB-94724T Combustion Air Blower Assembly 1/40 HP 120V

The Lennox 73W09 is a complete draft inducer motor assembly designed for residential gas furnaces. This combustion air blower operates at 120 volts with 1/40 horsepower and features a dual-speed motor with an RPM range of 2200-3300. The motor is manufactured by Fasco under part number 7062-6172 and is engineered to pull combustion gases through high-efficiency heat exchangers.

Key Features:

• 1/40 HP permanent split capacitor (PSC) motor type
• 120V, 60 Hz operation with 0.50/0.20 amp draw
• Dual-speed operation: 2200-3300 RPM range
• CWLE (clockwise looking at end) rotation
• Thermally protected with sealed bearings
• Single phase, 60 Hz operation

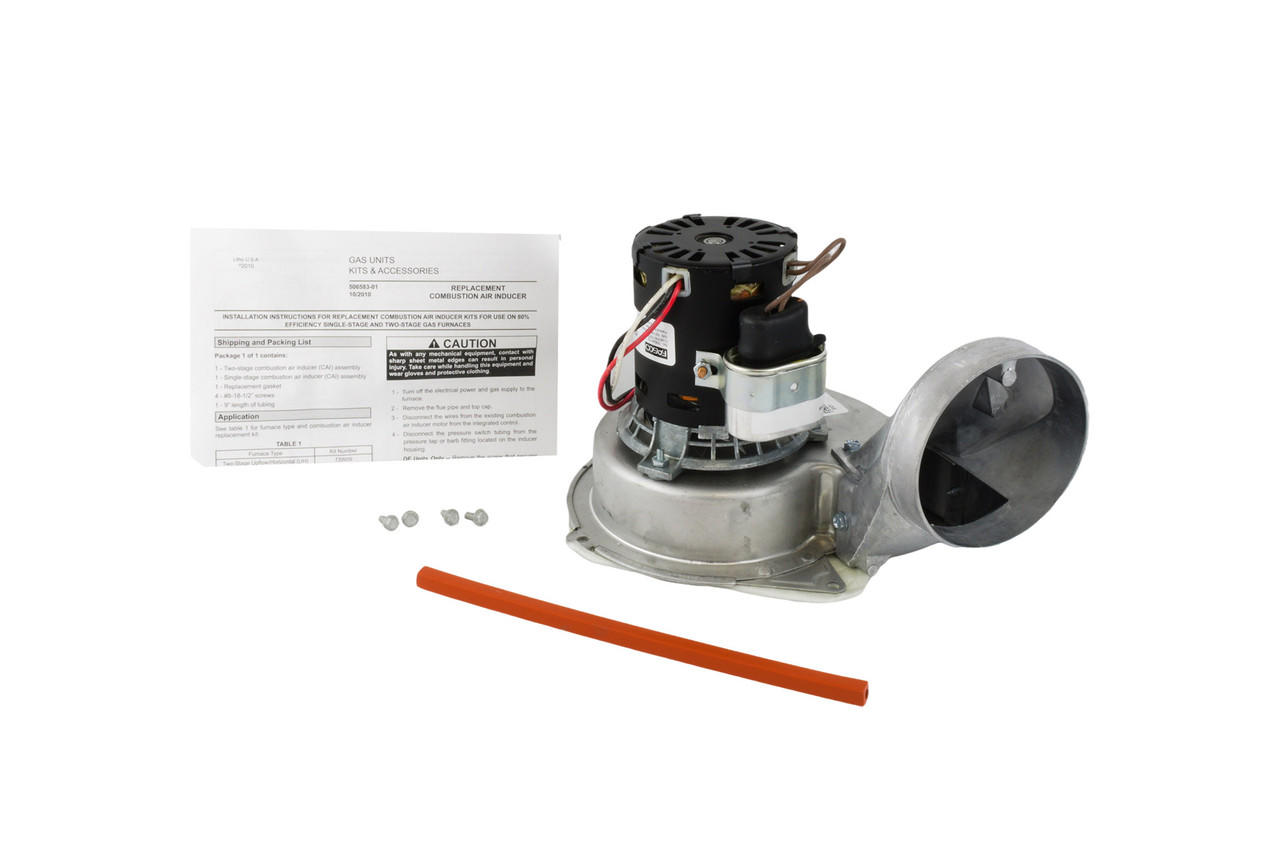

Complete Assembly Includes:

• Draft inducer motor assembly with gasket and capacitor
• Pressure switch tube
• Mounting screws (4)
• Installation instructions

This OEM replacement combustion air blower is essential for proper furnace operation, ensuring safe and efficient removal of flue gases while maintaining proper combustion air flow. Also cross-references as Lennox part 73W0901 and Fasco 7062-6172.
