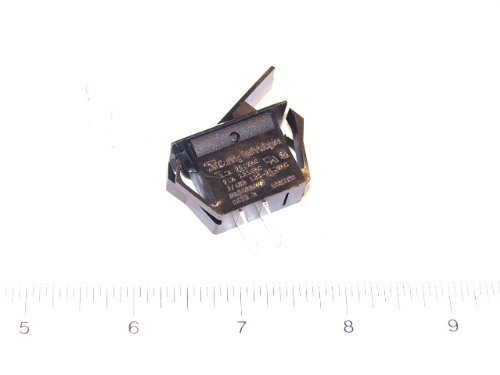

Carrier HR54ZA003 Door Safety Switch for Furnace and Air Handler

The Carrier HR54ZA003 is an OEM replacement door safety switch designed for Carrier, Bryant, and Payne furnaces and air handlers. This critical safety component automatically cuts power to the blower motor when the access panel is removed, protecting against carbon monoxide circulation and electrical hazards.

Key Features:

• Genuine Carrier OEM replacement part ensuring proper fit and function
• Spring-loaded plunger design that activates when the blower door closes
• Prevents blower operation when access panel is open or improperly secured
• Rated for 250 VAC operation for reliable performance
• Protects against backdrafting of combustion gases into living spaces
• Simple plug-and-play installation with quick-connect terminals

Safety Function:

This door interlock switch serves as an essential safety device that prevents the furnace blower from operating when the access panel is removed. When the blower door is properly closed, the panel depresses the switch plunger, completing the electrical circuit and allowing normal operation. If the door is opened or becomes loose, the switch immediately interrupts power to prevent potential carbon monoxide circulation and protect against electrical shock hazards during filter changes or maintenance.

Compatibility:

Direct replacement for Carrier part numbers HR54ZA003 and cross-references to B4310407. Compatible with various Carrier, Bryant, and Payne heating and cooling systems.
