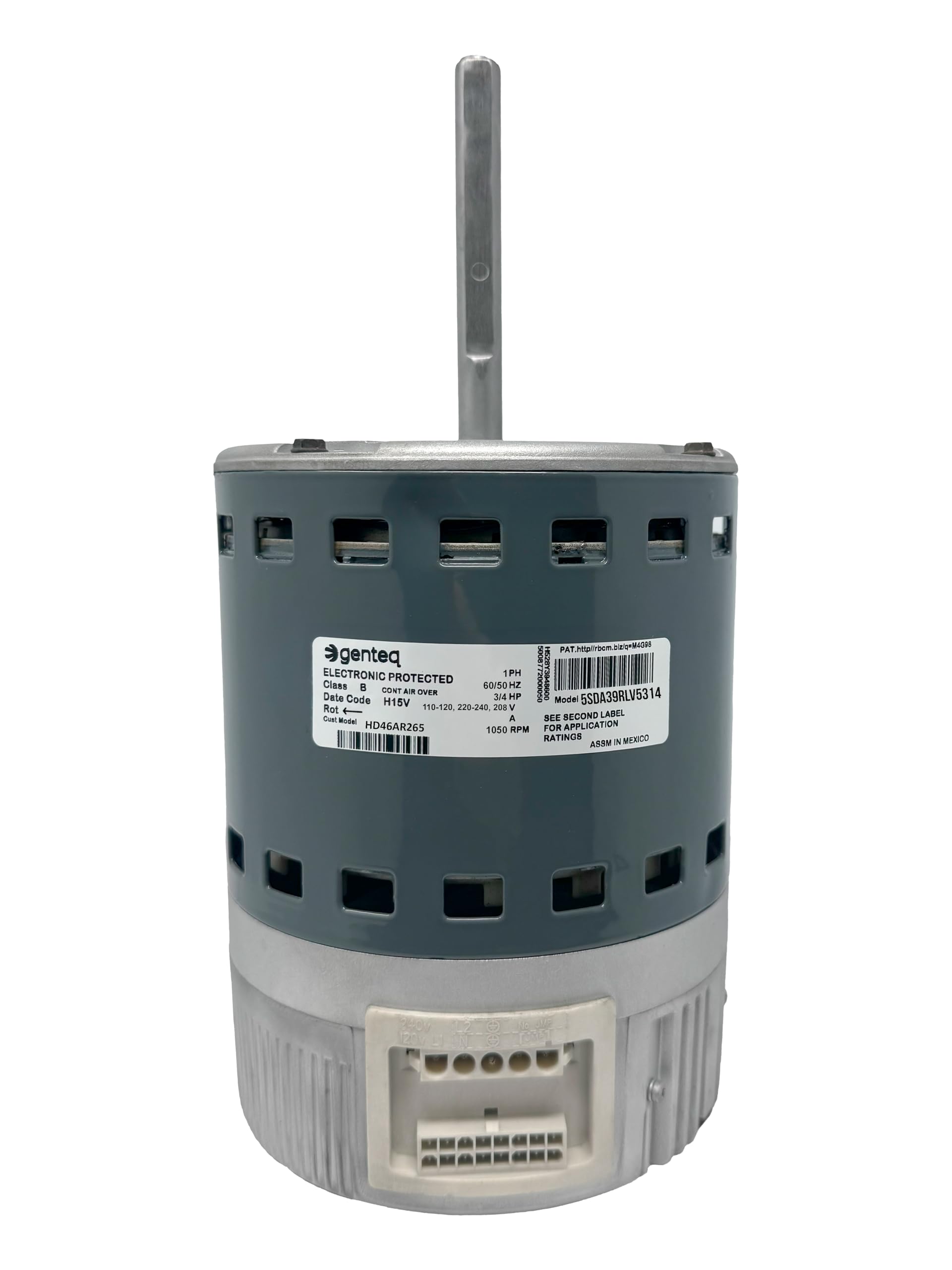

Carrier HD46AR265 ECM Variable Speed Blower Motor 3/4 HP 120/240V

The Carrier HD46AR265 is an OEM variable speed ECM (Electronically Commutated Motor) blower motor assembly designed for direct replacement in Carrier, Bryant, and Payne HVAC systems. This factory-authorized part ensures seamless integration and maintains UL and CSA certifications for your heating and cooling equipment.

Key Specifications:

• Motor Output: 3/4 horsepower
• Voltage: 120/240V dual voltage capability
• Phase: Single phase (1-phase)
• Speed: 1400 RPM (variable speed capable)
• Rotation: Counter-clockwise
• Frequency: 60 Hz
• Full Load Amps: 9.6A at 120V, 6.8A at 240V
• NEMA Frame: 48

Features and Benefits:

• Includes integrated control module for precise speed regulation
• Variable speed ECM 5.0 technology for enhanced energy efficiency
• Factory-authorized OEM part ensuring exact fit and optimal performance
• Compatible with existing mounting hardware for simplified installation
• Maintains UL and CSA safety listings and certifications
• Manufactured to exact design specifications for reliability

This motor assembly is commonly used in various Carrier furnace and air handler models. The ECM technology provides energy savings through optimized speed control and reduced operational costs compared to traditional PSC motors.
