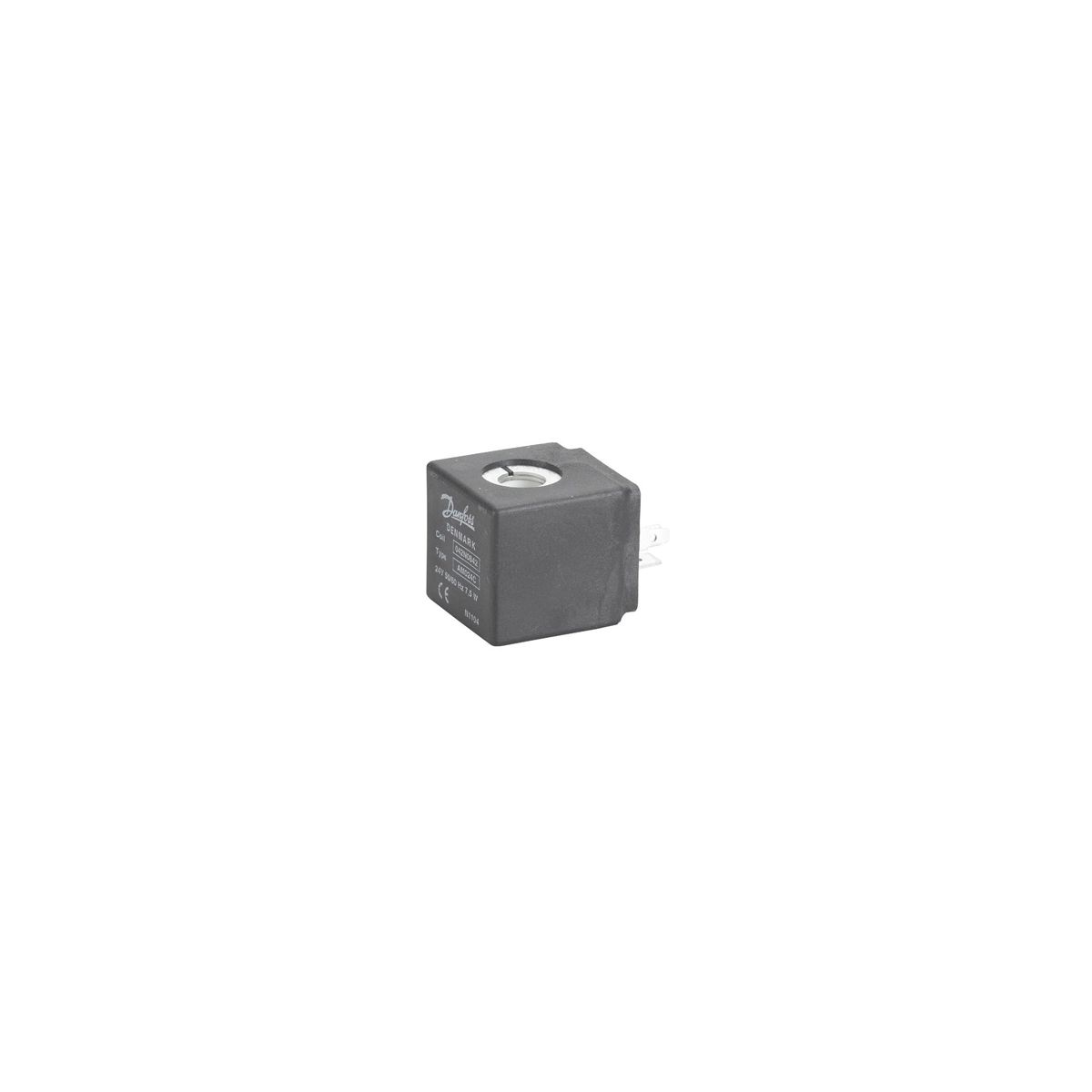

Danfoss 042N0840 Solenoid Valve Coil DIN Spade - AM230C 230V 7.5W

The Danfoss 042N0840 is a compact AM230C series solenoid valve coil designed for valve range A applications in industrial refrigeration and HVAC systems. This replacement coil features a 230V AC supply voltage and operates on both 50/60Hz frequencies with low power consumption of 7.5W at 50Hz and 6.5W at 60Hz.

Key Features:

• Compact design with Class H insulated wire windings molded into the coil body
• DIN 43650 form A spade connectors for quick and secure electrical connections
• Operates at 230V AC with dual frequency support (50/60Hz)
• Low power consumption: 7.5W (50Hz) / 6.5W (60Hz)
• Ambient temperature rating up to +50°C (-40°C to +50°C operating range)
• IP00 protection rating with spade connector configuration
• Compatible with Danfoss EV210A and similar valve series

This genuine Danfoss replacement coil provides reliable performance in refrigeration solenoid valve applications. The compact construction and robust Class H insulation ensure long service life even in demanding industrial environments.
