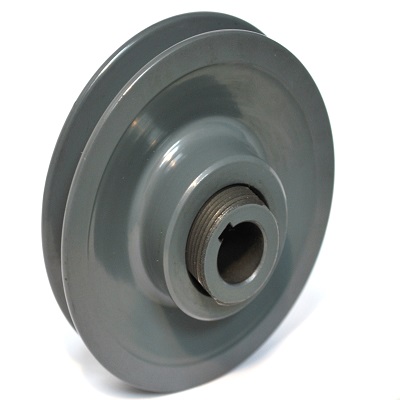

Reznor 13580 Variable Pitch V-Belt Sheave 5/8" Bore 1VL34

Manufacturer

Picture for manufacturer Reznor

Part Number

13580
8 reviews
Sale Price

$122.19

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Reznor 13580 is a variable pitch V-belt sheave designed for use in Reznor heating equipment, including ADFH and ADF series unit heaters. This genuine OEM replacement part features a 5/8-inch finished bore with keyway and setscrew for secure mounting to blower motor shafts.

Key Specifications:

  • Manufacturer Part Number: 1VL34
  • Bore Size: 5/8 inch (finished with keyway)
  • Outside Diameter: 3.15 inches
  • Single Groove Design
  • Variable Pitch: Adjustable from 2.0 to 3.0 inches pitch diameter
  • Compatible Belt Types: 3L, 4L, 5L, A, and B section V-belts
  • Construction: Cast iron for durability and precision
  • Keyway Size: 3/16" x 3/32"

This blower sheave pulley allows for speed adjustment by varying the effective pitch diameter, making it ideal for fine-tuning airflow in heating systems. The variable pitch design eliminates the need to stock multiple fixed sheaves for different speed requirements. Commonly used in Reznor AM series heaters ranging from 2 through 8 horsepower applications.

Precision-machined and statically balanced to minimize vibration during operation. The setscrew mounting system ensures reliable attachment to the motor shaft, while the adjustable flange design provides flexibility for belt tensioning and speed control.
