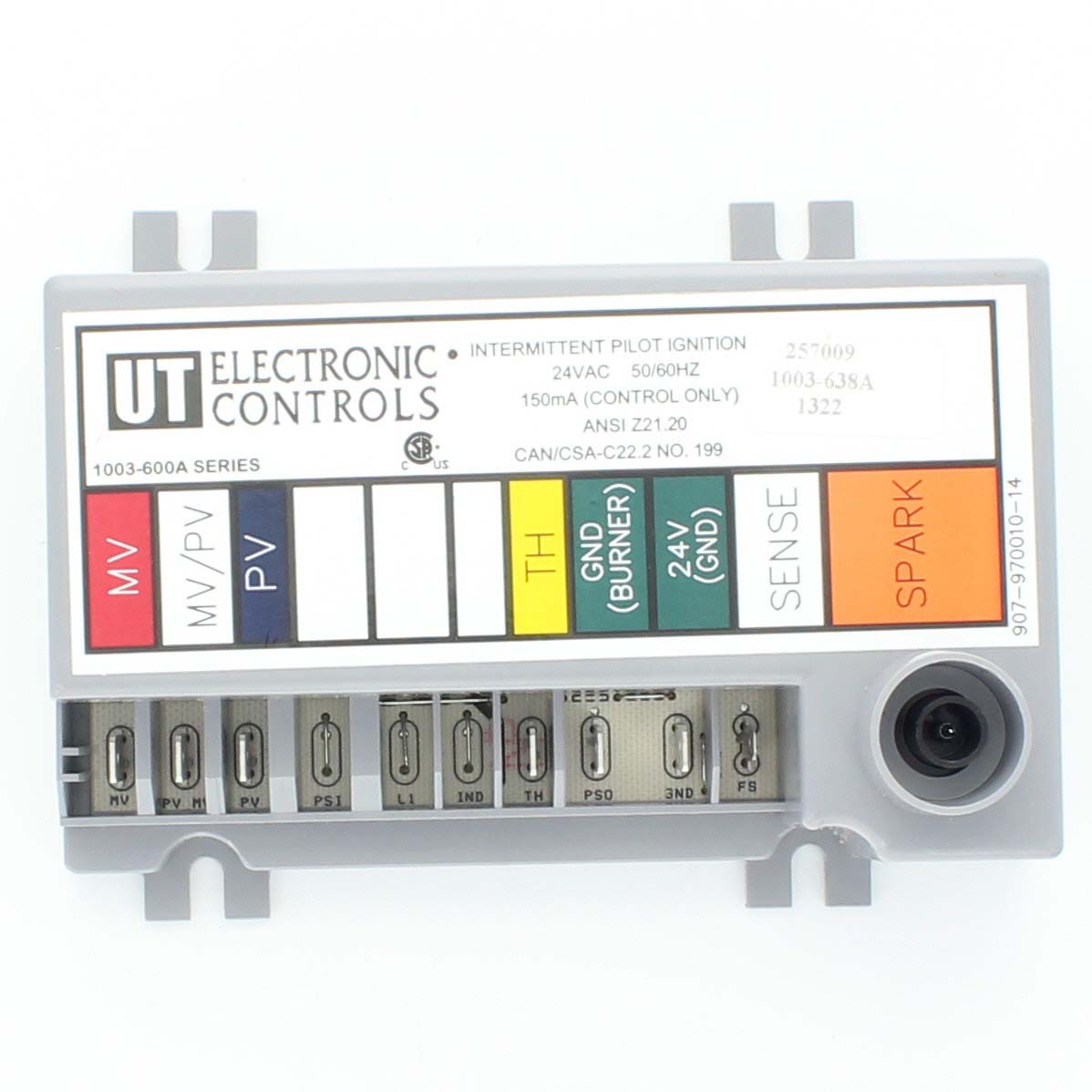

Reznor 257009 Intermittent Pilot Ignition Control Module UTEC 1003-638A

Manufacturer

Part Number

257009
Sale Price

$202.71

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Reznor 257009 is an intermittent pilot ignition control module designed for reliable and safe operation of Reznor gas-fired heating equipment. This OEM replacement component utilizes UTEC (United Technologies Electronic Controls) model 1003-638A technology to provide consistent ignition sequencing and flame sensing for commercial and industrial heating systems.

Key Features:

  • Intermittent pilot ignition system without lockout feature
  • 24 VAC, 50/60 Hz operation for standard low-voltage HVAC control circuits
  • 150 mA electrical load for efficient energy use
  • Flame sensing with minimum signal strength of 0.2 microamps
  • 1 second pre-purge with 90 second trial time
  • 5 minute delay between ignition trials
  • Compatible with Reznor models F, FE, B, BE, RX, RG, and X series heaters

This non-lockout control module manages the complete ignition sequence including spark generation, pilot flame verification, and safety monitoring. The unit mounts directly to existing brackets or control panels using included hardware and connects via color-coded wire assemblies for simplified installation. Designed for recycling systems without vent dampers, the 257009 provides dependable performance in demanding heating applications.
