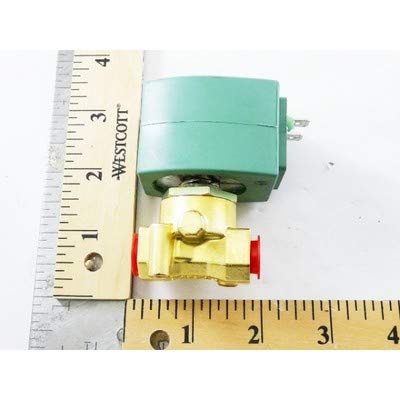

Asco OPSF8262H22 1/4 Inch Normally Closed 2-Way Solenoid Valve Brass General Service

The Asco OPSF8262H22 is a direct acting 2-way solenoid valve from the 8262 Series, featuring a 1/4 inch NPT connection size and normally closed operation. This proven design features a brass body with tapped mounting holes and a welded core tube for higher pressure ratings. The valve operates efficiently under specific pressure conditions of up to 185 psi for air and 180 psi for water.

Key Features:

• 1/4 inch normally closed (N/C) configuration
• Operating pressure: 0 psi minimum to 180 psi water, 155 psi air, 140 psi oil
• Operating temperature: -13°F to 131°F ambient; maximum fluid temperature 180°F
• Available in AC or DC operated configurations
• Mountable in any position with high flow capability and smaller poppets for tight shut-offs
• Impact resistant and waterproof solenoid enclosure

The 8262 Series is designed to handle media such as air, water, hot water, steam, light oil, fuel gas, fuel oil, biodiesel fuel and cryogenic fluids. As a direct acting valve, it does not require a minimum operating pressure. Suitable for commercial and industrial applications including car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, and food processing.
