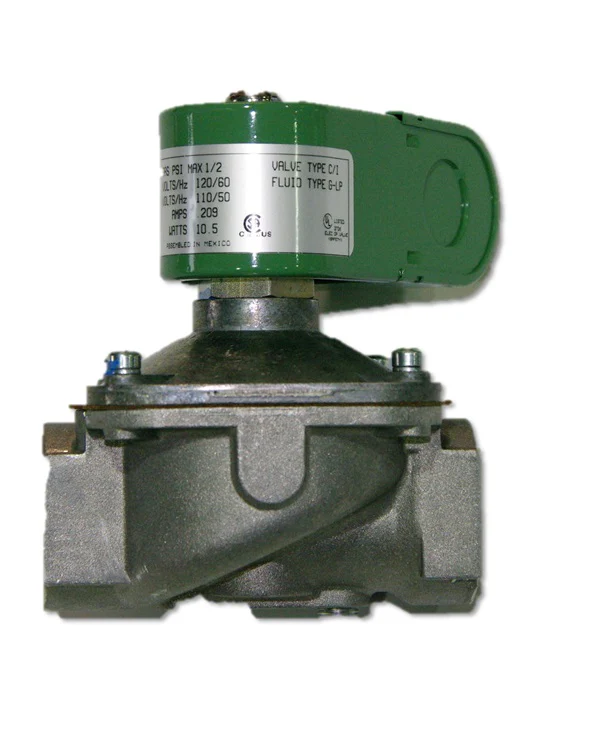

Asco K3A652V NPT Gas Shutoff Solenoid Valve Normally Closed Burners, Orifices & Combustion Parts - 120V 3/4 2-Way

The Asco K3A652V is a direct-acting gas shutoff solenoid valve designed for reliable control of pilot or main gas lines in commercial and industrial gas burner applications. This 2-way normally closed valve operates at 120V/60Hz and features a 3/4" NPT connection, making it suitable for a wide range of gas control systems.

Key Specifications:

• Maximum operating pressure of 5 PSI for gas applications
• BTU capacity up to 667,000
• 1-5/8" orifice size with Cv of 14.6
• 20 watt power consumption
• Maximum fluid temperature of 140°F

Construction and Features:

• Die-cast aluminum body for durability
• 305 stainless steel core tube with 430F stainless steel core and plug nut
• Opening and closing times are less than 1 second
• Provided with 1/8-inch NPT upstream and downstream pipe taps with plugs for routine testing
• 2-way normally closed operation for fail-safe shutoff

This valve is engineered for positive shutoff performance in natural gas systems and replaces previous models K3A652T and K3A652U. Ideal for commercial burners, heating equipment, and industrial gas control applications requiring dependable on/off control.
