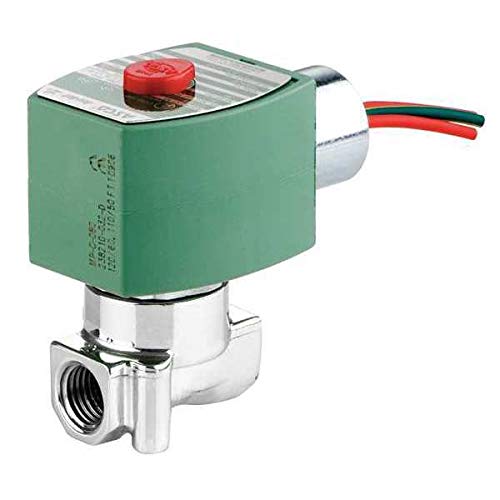

Asco 8262H220 Stainless Steel Solenoid Valve 1/4 Inch NPT Normally Closed 120V AC

The ASCO 8262H220 is a direct-acting, 2-way general service solenoid valve from ASCO's renowned RedHat series. This normally closed valve features a rugged stainless steel body construction designed for reliable automated fluid control in commercial and industrial applications.

Key Features:

• 1/4 inch NPT female threaded inlet and outlet connections
• Stainless steel body with lead-free construction for potable water compliance
• 5/32 inch orifice size with 0.52 Cv flow coefficient
• 120V AC, 60 Hz operation (also compatible with 110V AC, 50 Hz) at 10.1 watts
• Direct-acting poppet design for zero minimum operating pressure
• Nitrile butylene (NBR) sealing for broad media compatibility
• NEMA 1/2/3/3S/4/4X rated enclosure with watertight protection
• Can be mounted in any position for installation flexibility

Operating Parameters:

• Maximum pressure: 210 PSI (air), 200 PSI (water), 145 PSI (light oil)
• Fluid temperature range: -13°F to 180°F
• Ambient temperature: -13°F to 131°F
• Suitable for air, inert gas, water, and light oil (up to 300 SSU viscosity)

This valve features a welded core tube for enhanced pressure ratings and tapped mounting holes for secure installation. The 430F stainless steel core and plugnut ensure long-lasting durability, while the smaller poppet design provides tight shut-off performance. Ideal for applications including pumps, compressors, food processing equipment, car wash systems, and automated fluid control systems.
