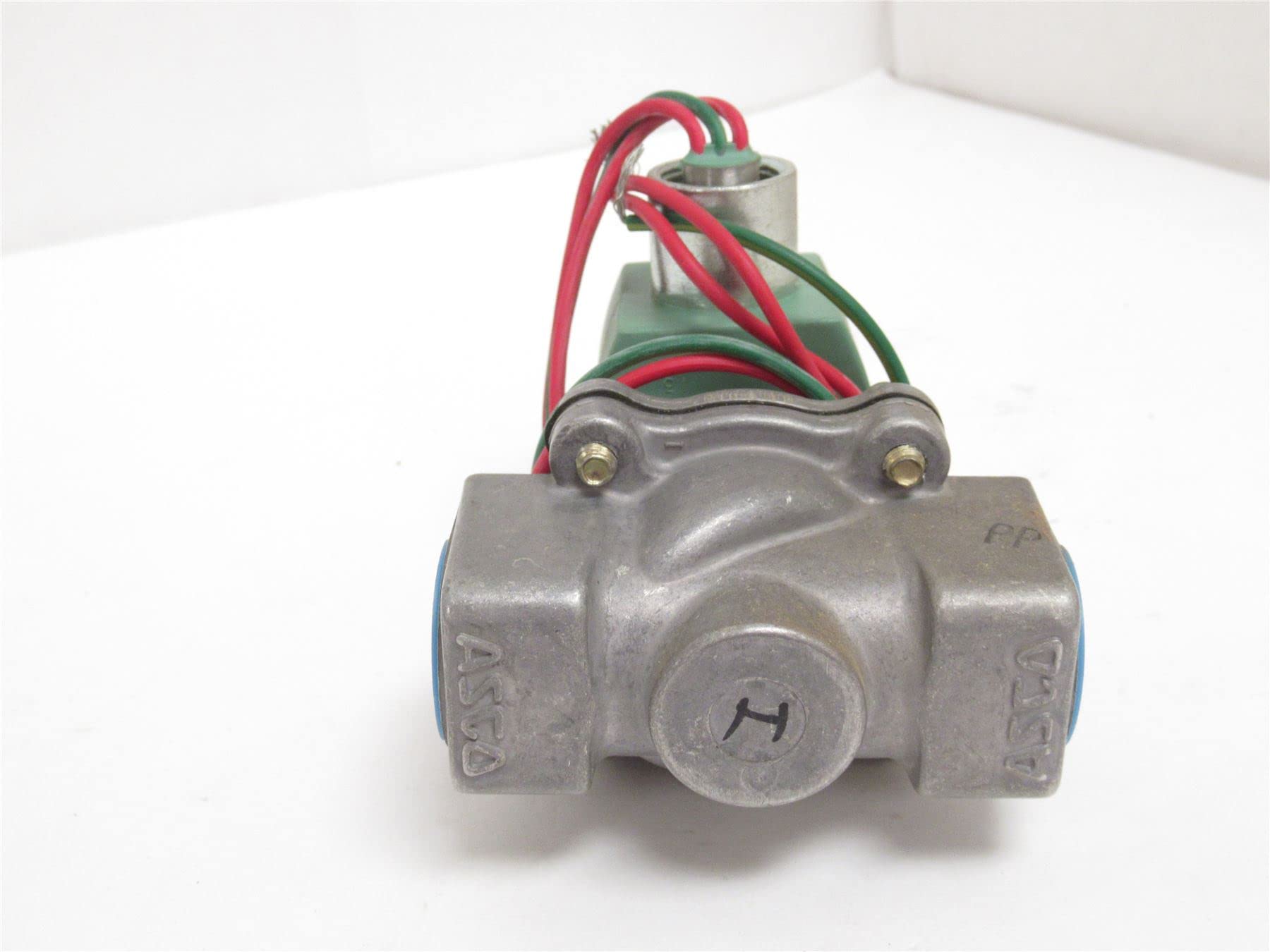

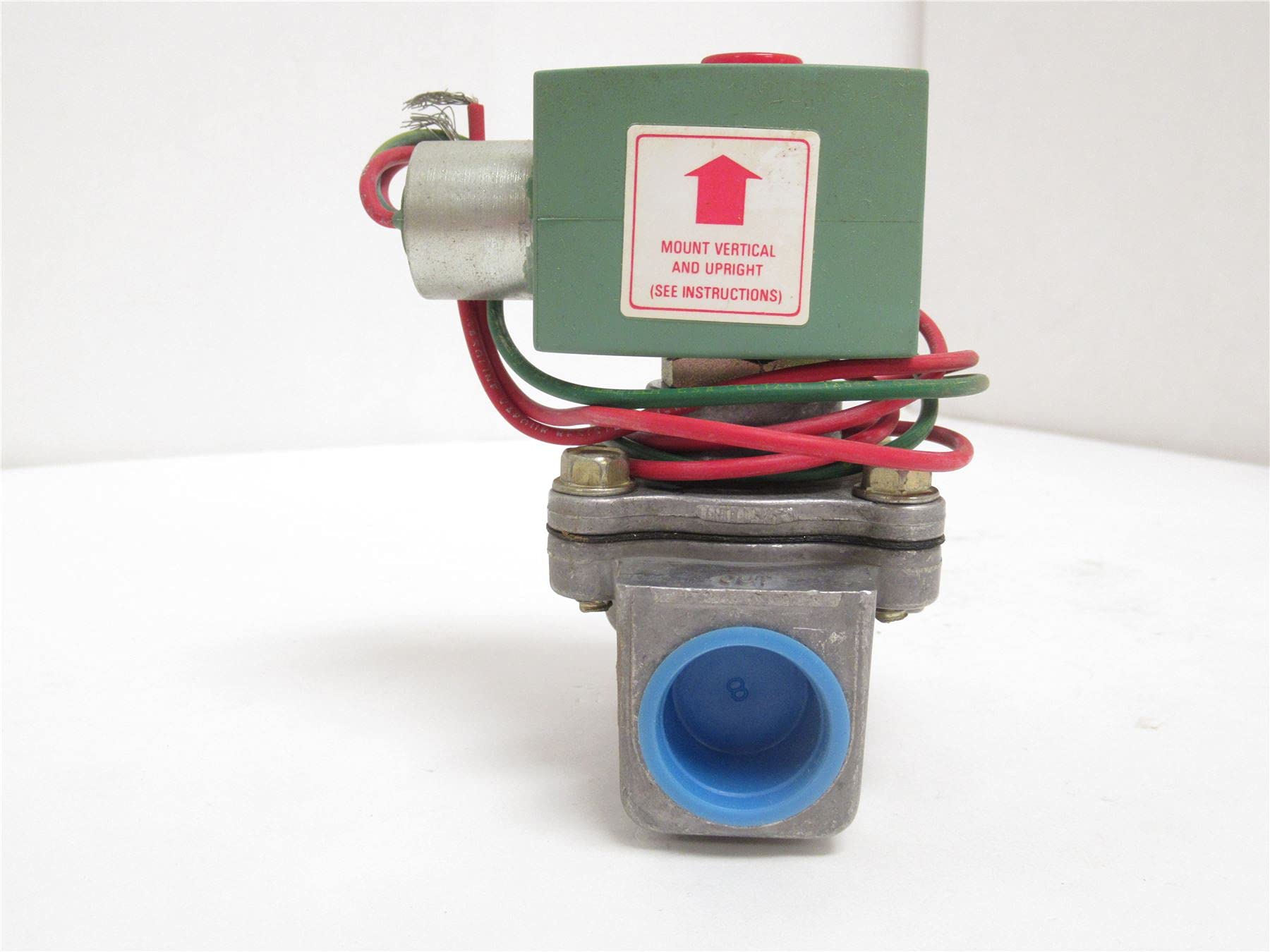

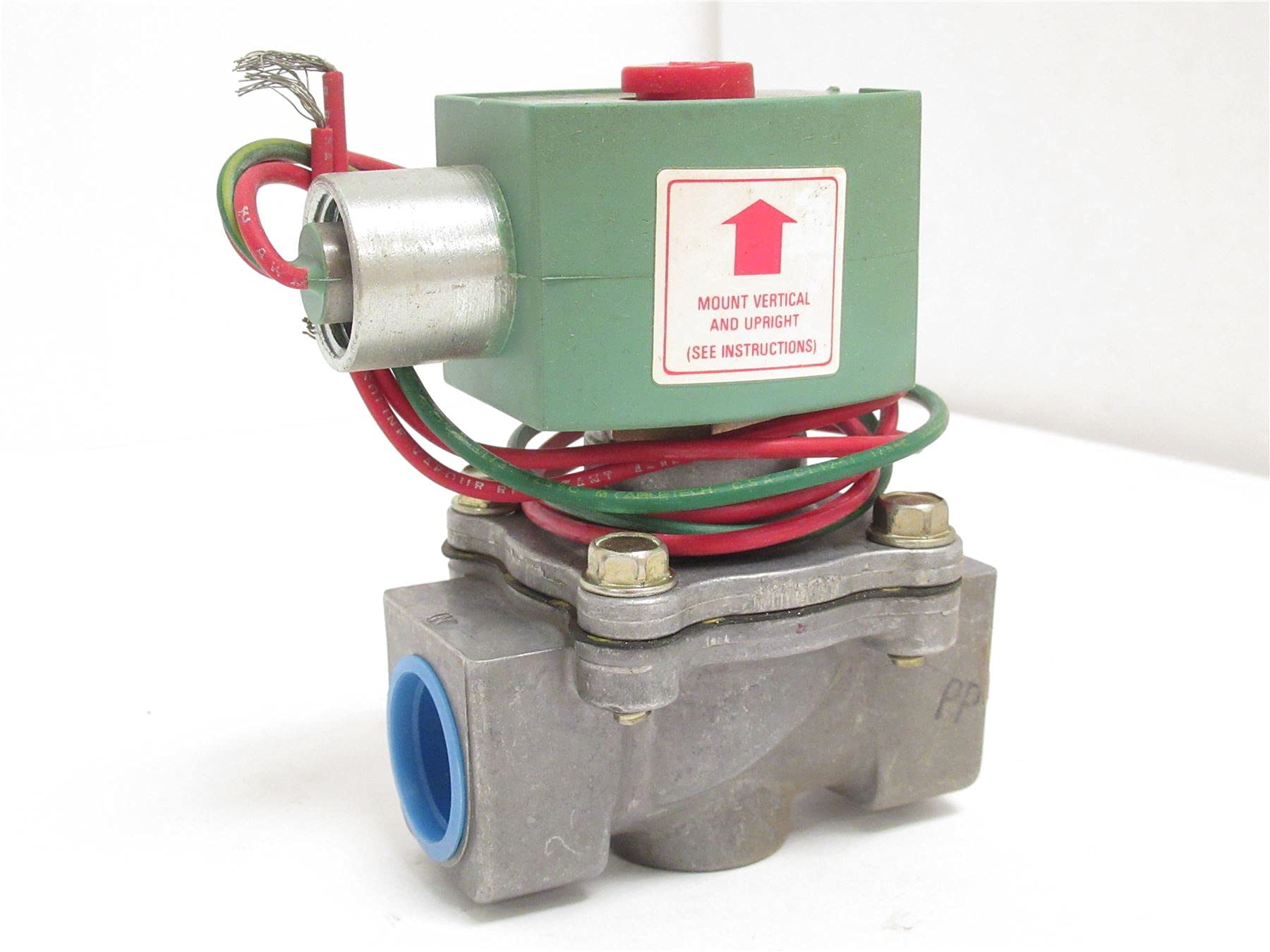

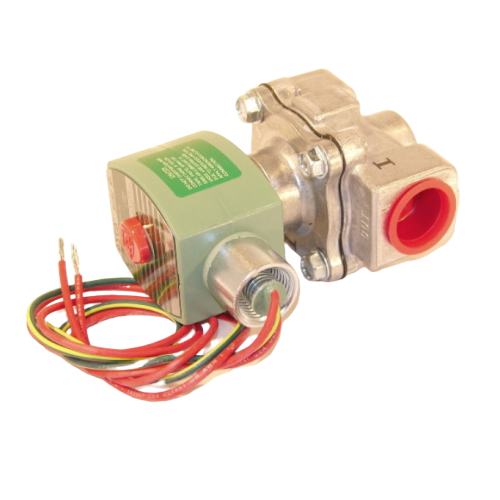

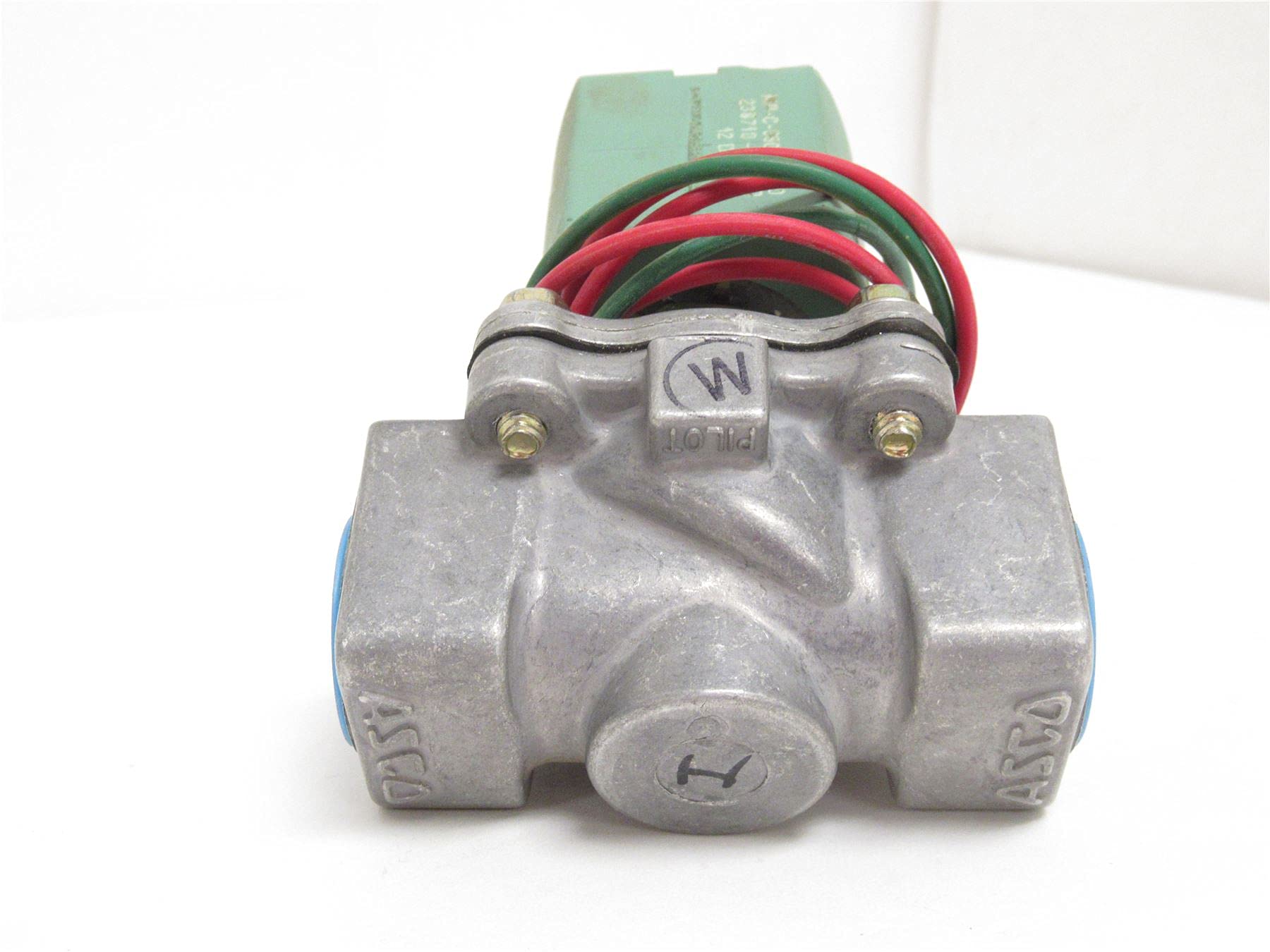

Asco 8215G30 2-Way Normally Closed Solenoid Valve 3/4" NPT Aluminum Body

The Asco 8215G30 is a 2-way normally closed solenoid valve from the Red-Hat Series 8215, engineered for reliable air, vacuum, and fuel gas service applications. This pilot-operated valve features a rugged aluminum body with steel and stainless steel internal components for long-lasting durability in demanding industrial environments.

Key Features:

• 3/4 inch NPT female port connections with 3/4 inch orifice size
• Lightweight aluminum body construction with corrosion-resistant trim
• Direct acting or pilot-operated actuator design
• Flow capacity (Cv) of 5.1 for efficient operation
• Operating pressure differential: 0-25 PSI maximum at 104°F
• Gas capacity rating of 247,500 BTU/HR
• Buna-N (NBR) and PTFE sealing materials

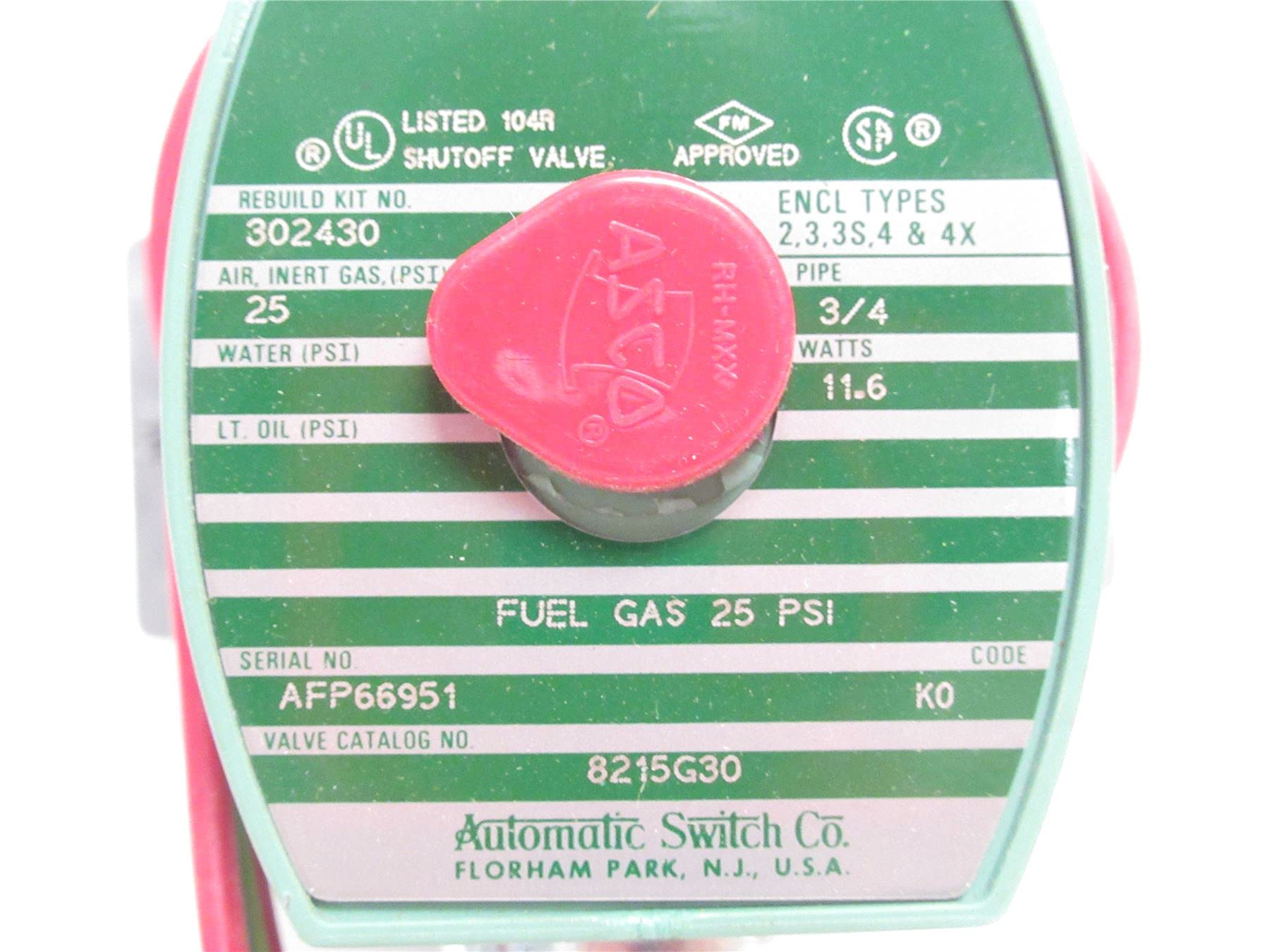

• UL approved as a safety shutoff valve
• Compact dimensions: 3.31 inches inlet to outlet length, 2.33 inches wide, 4.46 inches high

The Series 8215 valve is designed to handle liquefied petroleum gases (propane) in both liquid and gaseous states, making it ideal for low-pressure applications in HVAC systems, industrial process control, and gas appliance installations. Available with general purpose, explosion-proof, or watertight solenoid coil options to suit your specific application requirements.
