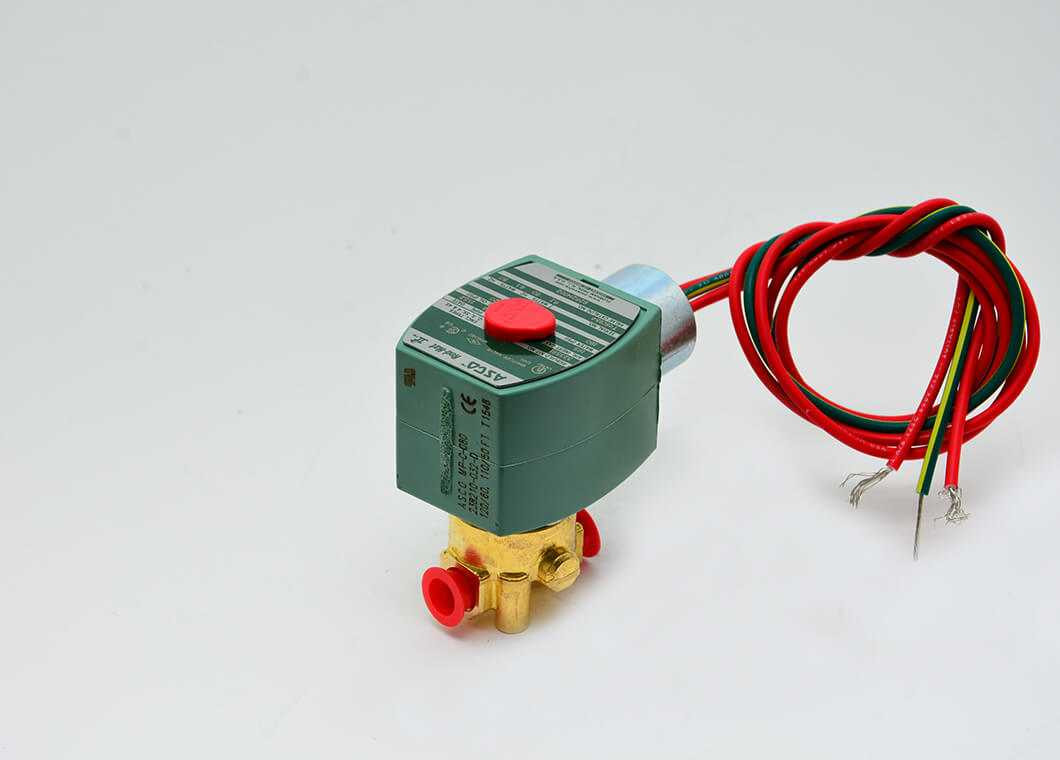

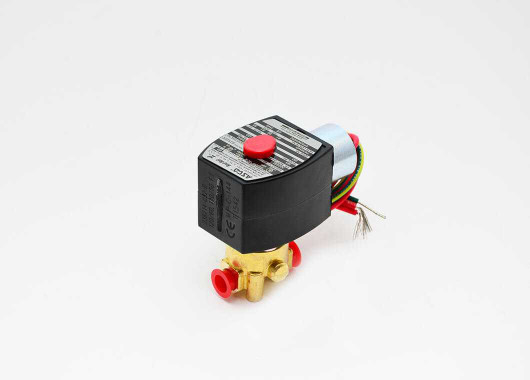

Asco 8262H7 2-Way Stainless Steel Solenoid Valve 1/4 Inch NPT

Manufacturer

Part Number

8262H7
Sale Price

$175.82

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Asco 8262H7 is a direct-acting, 2-way solenoid valve designed for general service fluid control applications. This normally closed valve features a rugged stainless steel body construction, making it ideal for demanding industrial and commercial environments where corrosion resistance is essential.

Key Features:

  • Direct-acting poppet valve design with 1/4 inch NPT connection size
  • Stainless steel body construction for superior corrosion resistance and durability
  • Normally closed operation - valve opens when solenoid is energized, closes when de-energized
  • Compact design with high flow capacity and tight shutoff performance
  • Welded core tube for higher pressure ratings
  • Can be mounted in any position for installation flexibility
  • Available in multiple voltage configurations (AC and DC)
  • UL Listed Safety Shutoff Valve

Technical Specifications:

  • Operating pressure differential: Up to 185 PSI (air/inert gas), 180 PSI (water), 140 PSI (light oil up to 300 SSU)
  • Minimum operating pressure: 0 PSI - no minimum pressure required
  • Maximum fluid temperature: 180°F (82°C)
  • Ambient temperature range: -13°F to 131°F (-25°C to 55°C)
  • Suitable for air, inert gas, water, and light oil applications

Part of the renowned Asco RedHat line, the 8262 Series is trusted worldwide for precision fluid control in applications including car wash systems, commercial dishwashing and laundry equipment, pumps, compressors, boilers, and various industrial automation systems. The stainless steel construction makes this valve particularly suitable for food processing, pharmaceutical, marine, and other applications requiring enhanced chemical resistance.
