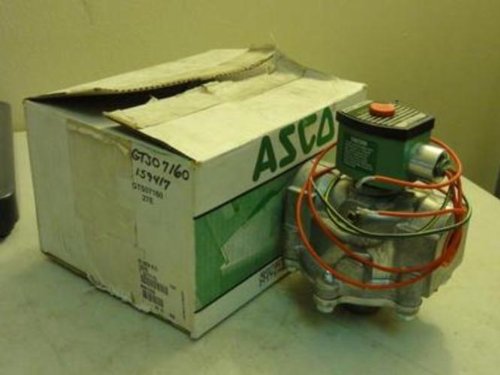

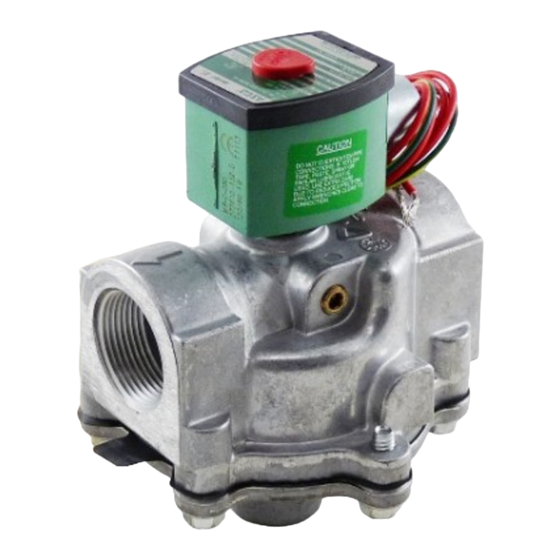

Asco 8214G54 1" 120V Normally Open Gas Vent Solenoid Valve NEMA 4

The Asco 8214G54 is a 2-way internal pilot-operated solenoid valve with normally open operation designed for fuel gas in commercial and industrial gas burners. This 1-inch NPT valve operates on 120V AC and features a NEMA 4X watertight housing for protection in demanding environments.

Key Features:

• Aluminum body construction with NBR seals
• Gas capacity of 1,179,000 BTU/hr for high-flow applications
• Pressure range: 0-5 PSI for low-pressure gas systems
• Flow coefficient (Cv) of 21 ensuring efficient flow
• 1-5/8" orifice size for maximum flow capacity
• Operating temperature range: -40°F to 125°F ambient, -40°F to 125°F fluid
• 20.1 watt power consumption with Class F coil insulation
• Includes 1/8" NPT downstream pipe tap with plug for routine testing

This normally open vent valve is ideal for safety shutoff applications in gas burner systems, automatically closing when energized to prevent gas flow during shutdown conditions. UL, CSA, FM approved for use in general purpose or safety shutoff applications.
