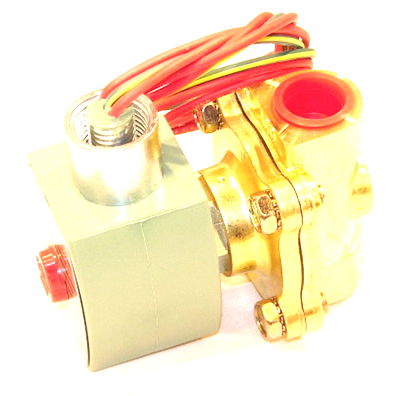

Asco 8210G2-12VDC 2-Way Normally Closed Solenoid Valve 1/2 Inch NPT

The Asco 8210G2-12VDC is a pilot-operated 2-way normally closed solenoid valve designed for general service applications including water, light oil, and compressed air systems. This industrial-grade valve features a 1/2 inch NPT connection and operates on 12 volts DC power.

Key Specifications:

• Port Size: 1/2 inch NPT
• Valve Configuration: 2-way, normally closed
• Operating Voltage: 12 VDC
• Flow Coefficient (Cv): 4
• Pressure Range: 5-125 PSI (air), 5-100 PSI (water and light oil)
• Body Material: Forged brass construction
• Seal Material: NBR (Nitrile) seals
• Enclosure: NEMA 4X watertight RedHat II enclosure

Features and Benefits:

• Pilot-operated design for reliable performance in medium to high pressure applications
• Rugged brass body provides excellent durability and corrosion resistance
• NBR seals deliver long service life and low internal leakage
• NEMA 4X rated enclosure protects against water, dirt, and harsh environments
• Suitable for car wash systems, laundry equipment, air compressors, and industrial water control

The 8210G2 series valve operates in ambient temperatures from 32°F to 104°F (0°C to 40°C) for DC powered models. This normally closed valve remains sealed until the coil is energized to open, making it ideal for fail-safe applications where flow must stop when power is lost.
