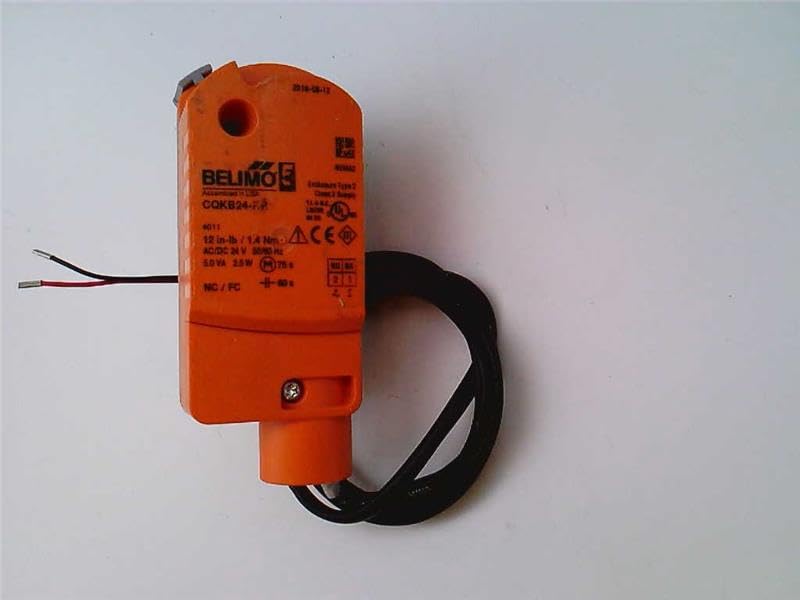

Belimo CQKB24-RR Electronic Fail-Safe Valve Actuator AC/DC 24V On/Off Normally Closed

Manufacturer

Part Number

CQKB24-RR
Sale Price

$137.86

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo CQKB24-RR is an electronic fail-safe valve actuator designed for precise On/Off control in HVAC zone applications. Part of Belimo's innovative ZoneTight series, this compact actuator provides reliable operation with AC/DC 24V power supply and features a normally closed configuration with fail-safe position closed for enhanced system safety.

Key Features:

  • Electronic Fail-Safe Operation: Automatically returns to closed position upon power loss for system protection
  • Dual Voltage Capability: Operates on AC/DC 24V ± 20% (50/60 Hz) for flexible installation
  • Low Power Consumption: Only 2.5W running and 0.5W holding power for energy efficiency
  • 90° Angle of Rotation: Adjustable with integrated mechanical stop for precise valve positioning
  • Fast Response Time: 75 seconds motor run time, less than 60 seconds fail-safe action
  • Tool-Free Installation: Mounts directly to compatible valves without additional linkage
  • IP40/NEMA 2 Protection: Suitable for building automation environments
  • UL 2043 Compliant: Approved for plenum applications per NEC Section 300.22(C)
  • Maintenance-Free Design: No routine servicing required for long-term reliability

Technical Specifications:

  • Control Type: On/Off, Two-Position
  • Nominal Voltage: AC/DC 24V (20V to 28.8V range)
  • Electrical Connection: 22 AWG plenum-rated cable with 1/2" conduit connector
  • Operating Temperature: 35°F to 104°F (2°C to 40°C)
  • Operating Humidity: 5% to 95% RH, non-condensing
  • Weight: 0.55 lbs (0.25 kg)
  • Housing Material: UL94-5VA rated
  • Transformer Sizing: 5 VA
  • Warranty: 5 Years

The CQKB24-RR actuator features electronic overload protection throughout the full 0-90° rotation range and meets cULus requirements without requiring an electrical ground connection. Actuators can be connected in parallel, making them ideal for multi-zone HVAC applications. Designed for use with Belimo ZoneTight ball valves in sizes 1/2" to 1", this actuator provides zero leakage performance and superior reliability in hydronic heating and cooling systems.
