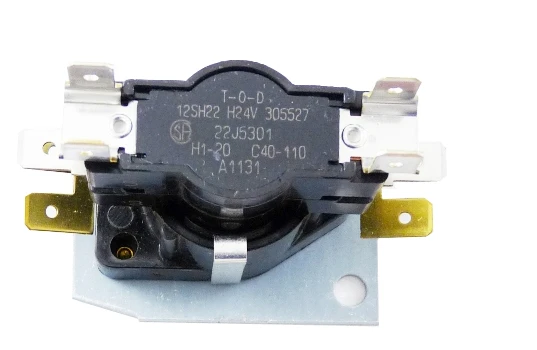

Lennox 22J53 Heat Sequencer Relay

The Lennox 22J53 is a genuine OEM heat sequencer relay designed for electric furnaces and heat pump systems. This critical component controls the staged activation of heating elements, preventing electrical overload and ensuring safe, efficient operation of your HVAC system.

Key Features:

• Genuine Lennox OEM part (Model/Part Number: 22J5301)
• Controls lower sequencing operation in multi-stage heating systems
• Prevents circuit breaker trips by staggering heating element activation
• Designed for electric furnaces and heat pump auxiliary heating
• Lightweight construction at 0.1 lbs for easy installation
• Compatible with multiple Lennox furnace and air handler models

Heat sequencers work by controlling the timing and order in which heating elements receive power. Instead of energizing all elements simultaneously—which would overload your home's electrical system—the sequencer activates each element in a timed sequence. This staged approach prevents excessive amperage draw, protects your electrical panel from tripping, and extends the lifespan of heating elements. The Lennox 22J53 specifically manages the lower sequence relay function, coordinating with other sequencers in multi-stage systems to deliver consistent, reliable heat without electrical stress.

This sequencer is essential for maintaining optimal furnace performance. A failing sequencer can cause inadequate heating, circuit breaker trips, or complete system shutdown, making timely replacement crucial for comfort and safety.
