Johnson Controls VG7842RT+7153G Globe Valve Assembly Cv with Electric Actuator - 3-Way 1-1/2 in 28.9 VA-7153

Manufacturer

Part Number

VG7842RT+7153G
Sale Price

$939.71

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Johnson Controls VG7842RT+7153G is a factory-assembled control valve package combining the VG7842RT Series VG7000 3-Way Brass Trim Globe Valve with the VA-7153-1001 Electric Actuator. Designed for precise HVAC hydronic system control, this assembly delivers reliable on/off and floating control with feedback for hot water, chilled water, glycol solutions, and low-pressure steam applications.

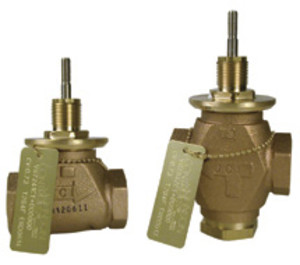

The VG7842RT valve body features a cast bronze body with a stainless steel stem, brass plug, elastomer disc seat, and EPR rubber packing. The 3-way mixing configuration and 28.9 Cv flow coefficient make it well suited for medium-to-large air handling unit coils and terminal unit applications requiring balanced flow diversion or mixing.

Key Features:

  • Valve Size: 1-1/2 in. NPT (female threaded)
  • Flow Coefficient (Cv): 28.9
  • Valve Pattern: 3-way mixing (linear flow characteristic)
  • Trim Material: Brass (ANSI Class IV leakage, 0.01% of maximum flow per ANSI/FCI 70-2)
  • Body Material: Cast bronze — rated ANSI B16.15 Class 250
  • Valve Stroke: 3/4 in. (19 mm) for 1-1/2 in. valves
  • Rangeability: 25:1 per EN 60534-2-4
  • Actuator Model: VA-7153-1001 — Non-Spring Return, 24 VAC, 50/60 Hz
  • Actuator Control: On/Off and Floating with position feedback
  • Supply Voltage: 24 VAC
  • Media Compatibility: Hot or chilled water, glycol solutions up to 50%, and steam up to 35 psig
  • Fluid Temperature Range: Water: 35°F to 248°F (2°C to 120°C); Steam: up to 338°F (170°C) at 35 psig maximum
  • Maximum Pressure Rating (Brass/Water): 400 psi up to 150°F, decreasing to 365 psi at 248°F
  • Recommended Maximum Pressure Drop: 30 psid for 1-1/2 in. valves (water); 15 psid (steam, brass trim)
  • Factory or field assembly available
  • Compatible with Johnson Controls building automation systems

The VG7842RT+7153G assembly ships ready to install and is suitable for use in commercial and industrial HVAC applications including air handlers, fan coils, and heat exchangers. The direct-coupled actuator requires no linkage, simplifying installation and reducing maintenance. Refer to Johnson Controls Product Bulletin LIT-977140 for complete application and installation guidance.
