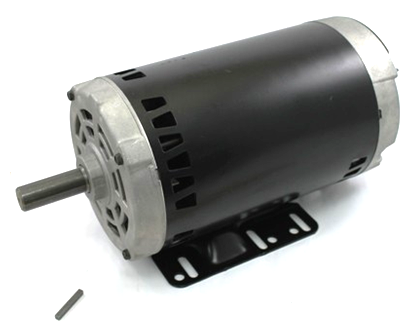

Carrier HD680018 3HP Belt Drive Blower Motor 230/460V 1750 RPM 3-Phase

The Carrier HD680018 is a genuine OEM 3-horsepower belt drive blower motor designed for commercial and industrial HVAC applications. This heavy-duty motor operates on dual voltage (208/230/460VAC) with 3-phase power at 60Hz, running at 1750 RPM for reliable air circulation in rooftop units, air handlers, and commercial heating and cooling systems.

Key Specifications:

• 3 HP three-phase motor, 1750 RPM operating speed
• Multi-voltage operation: 208/230/460 VAC, 60 Hz
• Current draw: 9.4A at 208V, 8.9A at 230V, 4.5A at 460V
• Factory Authorized Part for exact drop-in replacement
• Replaces discontinued part number HD58DL851

Benefits:

• Meets exact design specifications for optimum system performance
• Engineered to pass rigorous design life testing for maximum reliability and durability
• Preserves equipment warranty with genuine OEM construction
• Maintains all agency listings and safety standards

This motor features proprietary design specifications that ensure proper fit and function in Carrier commercial HVAC equipment. The belt drive design provides flexibility for various blower wheel configurations and airflow requirements in large-capacity systems.
