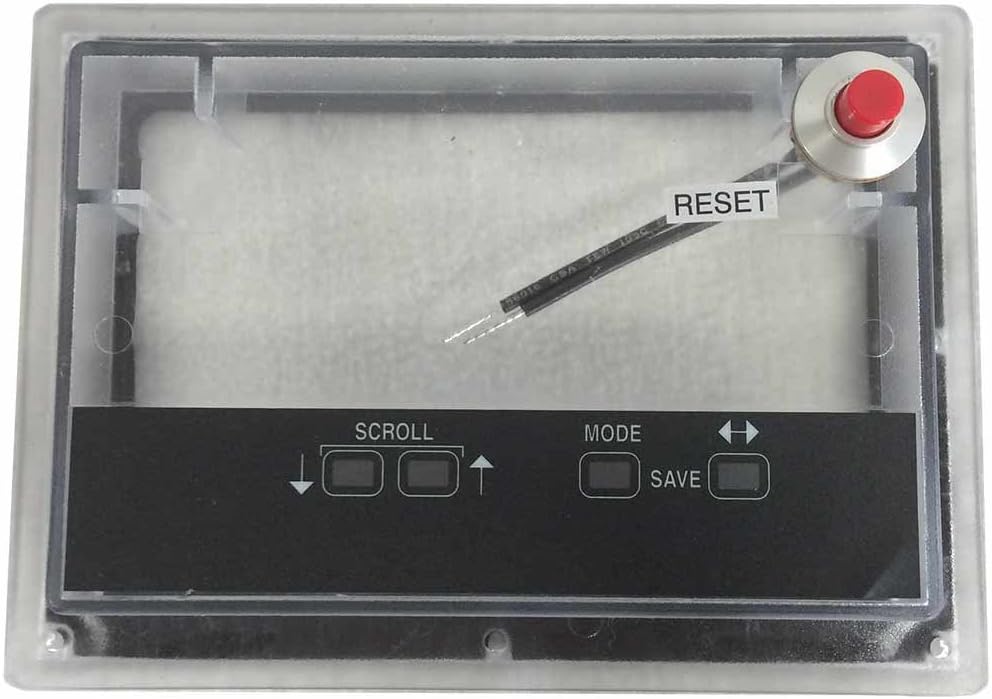

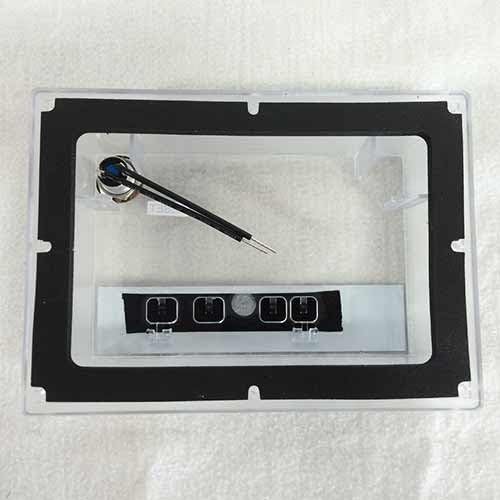

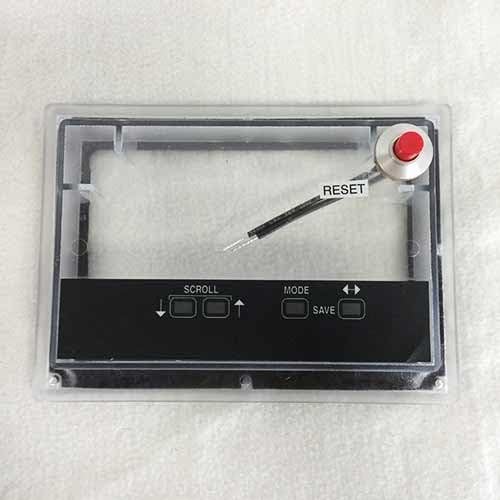

Honeywell 204718C NEMA 4 Cover Assembly with Reset Button for S7800 Keyboard Display Module

The Honeywell 204718C is a NEMA 4-rated cover assembly designed for panel mounting of the S7800 Series Keyboard Display Module (KDM) used in Honeywell's 7800 Series burner control systems. This cover provides environmental protection for the KDM while adding a convenient integrated reset button, allowing operators to reset the 7800 Series burner control device directly through the enclosure without removing the cover.

When installed, the 204718C enables a UL NEMA Class 4 enclosure rating for the S7800 Keyboard Display Module, protecting the display and electronics from dust, dirt, splashing water, and other harsh environmental conditions common in industrial combustion and burner control applications.

Key Features:

• NEMA 4 enclosure rating for dust and water protection
• Integrated reset button for 7800 Series burner control devices
• Designed for panel mounting of the S7800 Series Keyboard Display Module (Series 1–4)
• Includes Honeywell 203541 5-wire connector
• Enables UL NEMA Class 4 rating for the S7800 KDM when installed
• Compatible with Honeywell RM7800 Series relay module burner controls

Compatible With:

• Honeywell S7800A Keyboard Display Module (Series 1–4)
• Honeywell 7800 Series burner control systems

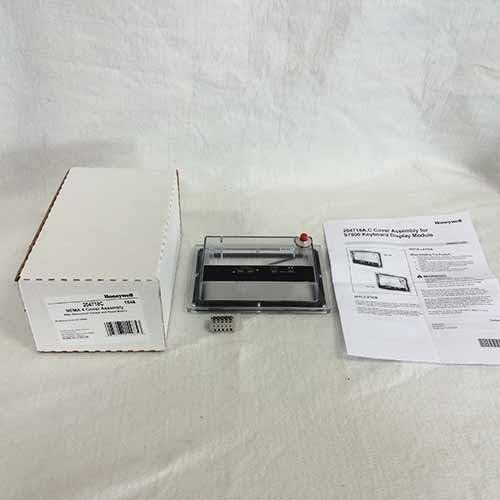

Includes:

• NEMA 4 cover assembly with integrated reset button
• Honeywell 203541 5-wire connector

The Honeywell 204718C is the ideal protective solution for industrial environments where the S7800 KDM requires both panel-mount enclosure protection and accessible burner control reset capability. OEM part number: 204718C.
