Johnson Controls VG7243NT+7150G VG7000 Series 1" Stainless Steel Globe Valve with VA-7150 Non-Spring Return Electric Actuator

The Johnson Controls VG7243NT+7150G is a factory-assembled combination unit pairing the VG7243NT Series VG7000 Stainless Steel Trim Globe Valve with the VA-7150-1001 Non-Spring Return Electric Actuator. Designed for commercial HVAC hydronic systems, this assembly provides precise two-position or floating-point control of hot water, chilled water, or steam applications.

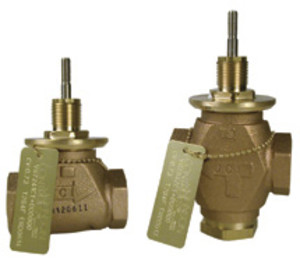

The VG7243NT globe valve features a 1-inch NPT connection, a normally open (N/O) configuration, and a Cv flow coefficient of 11.6, making it well-suited for balancing flow in terminal unit and zone control applications. The stainless steel trim construction offers enhanced corrosion resistance and durability compared to standard brass-trim valves.

The mated VA-7150-1001 actuator operates on 24V AC/DC and provides non-spring return, two-position or floating control action. Non-spring return design retains valve position on power loss, which is ideal for applications where a fixed fail position is not required.

Key Features:

• Valve Body: VG7243NT — 1" NPT, Normally Open, Cv 11.6
• Trim Material: Stainless steel for superior corrosion resistance
• Actuator Model: VA-7150-1001 Non-Spring Return Electric Actuator
• Voltage: 24V AC/DC
• Control Action: Two-position or floating point (non-spring return)
• Fail Position: Stays in last position on power loss (non-spring return)
• Series: VG7000 Globe Valve Series
• Factory-assembled combination for simplified installation

This combination valve and actuator assembly is a reliable solution for terminal unit control, fan coil units, air handling units, and zone valve applications in light commercial and commercial building automation systems. The Johnson Controls VG7000 series is widely compatible with DDC and pneumatic control systems.
