Johnson Controls VG7243LT+72CHGC Two-Way Globe Valve with Electric Actuator - 3/4

The Johnson Controls VG7243LT+72CHGC is a complete actuated valve assembly consisting of a VG7000 Series 3/4 inch cast bronze two-way globe valve with a 7.3 Cv flow coefficient, paired with a VA7820-HGC-2 spring return electric actuator. This valve assembly accurately regulates the flow of water or steam in response to controller demands in HVAC systems.

Valve Features:

• 3/4 inch NPT female threaded connections for easy installation
• Flow coefficient (Cv) of 7.3 for precise flow control
• Cast bronze body with stainless steel trim for durability
• Two-way normally open, push-down-to-close configuration
• Safe working pressure: 308 PSI for water, 100 PSI for steam
• Maximum water temperature rating of 338°F

Actuator Features:

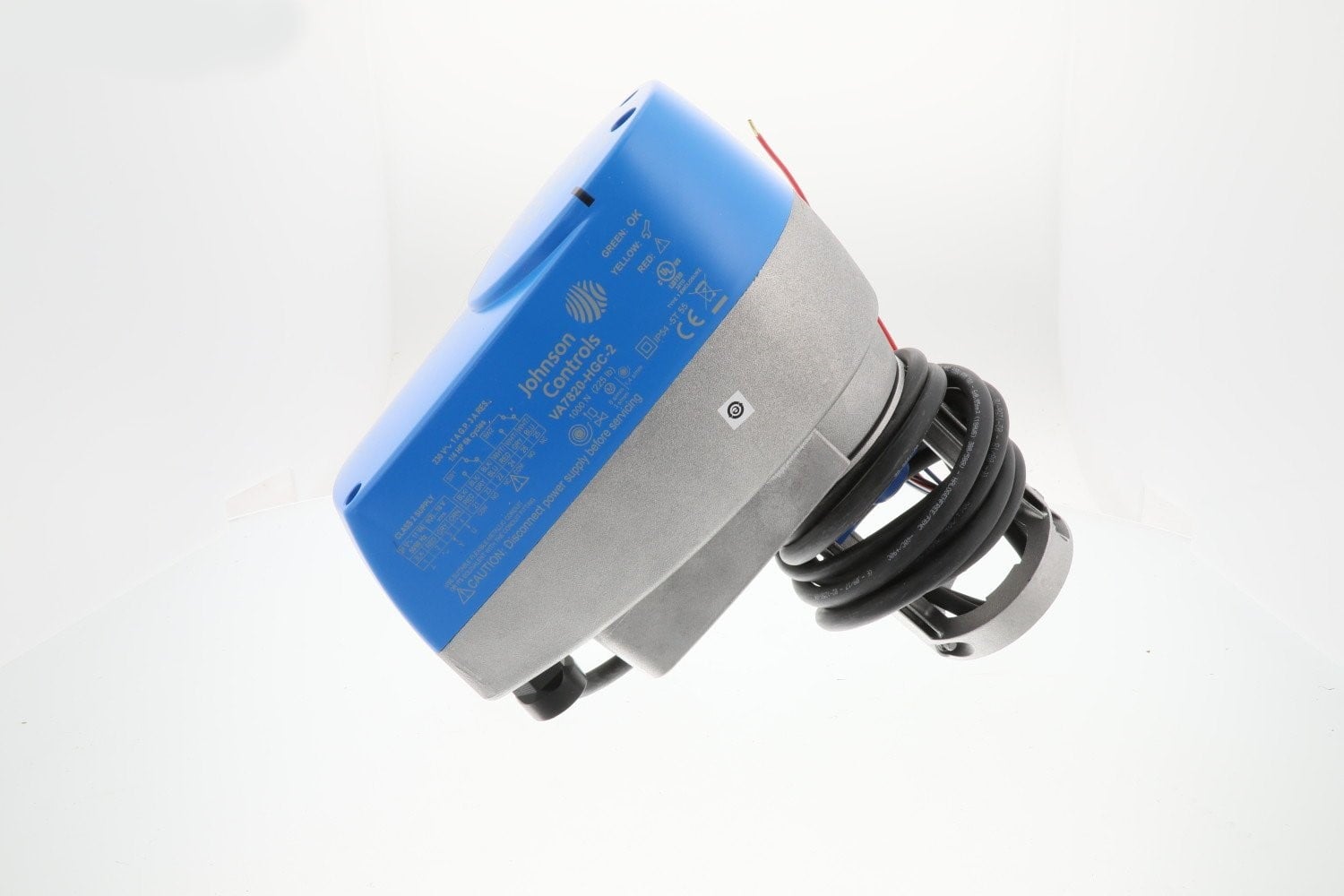

• VA7820-HGC-2 spring return electric actuator with two-position, floating, or proportional control capability supporting 0-10 VDC, 2-10 VDC, and 0(4)-20 mA input signals
• Delivers 180 lb-in torque for reliable performance
• Spring return function extends stem up on power failure for safe default positioning
• Includes two SPDT auxiliary switches for status indication
• Automatic stroke adjustment provides quick commissioning, with manual override for easy servicing
• 24 VAC power requirement with 11 VA rating

This factory-assembled valve and actuator combination is designed for hot water, chilled water, or steam control applications, exhibiting excellent control with two-way equal percentage response. The actuator ships factory-configured for 0-10 VDC proportional control and can be field-reconfigured via DIP switch settings for on/off or floating control.
