Johnson Controls VG7241ET+3008B 1/2" NPT 2-Way Normally Open Pneumatic Globe Valve with V-3000 Actuator

Manufacturer

Part Number

VG7241ET+3008B
Black Friday Price

$312.18

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

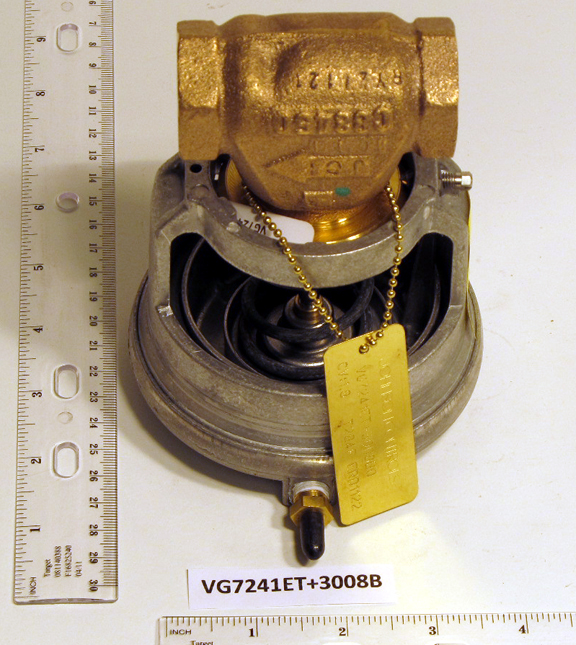

The Johnson Controls VG7241ET+3008B is a complete valve assembly featuring a 2-way normally open globe valve with an integrated V-3000-1 pneumatic actuator. Designed for hot water, chilled water, or steam control in HVAC systems, this assembly provides reliable modulating control for commercial and industrial applications.

Key Features:

  • Cast bronze body with brass trim construction for durability and corrosion resistance
  • Stainless steel stem ensures long service life
  • 1.8 Cv flow capacity for precise flow control
  • 3 to 6 psig spring range with spring return operation
  • Equal percentage flow characteristic provides excellent control response
  • Exposed yoke design for protected installation locations
  • 1/8" NPT barbed fitting for 5/32" O.D. polytubing air connection

Specifications:

  • Connection Size: 1/2" NPT female threads
  • Valve Type: 2-way normally open (push-down-to-close)
  • Operating Temperature: 35°F to 248°F (2°C to 120°C) for water applications
  • Actuator Operating Temperature: -20°F to 150°F (-29°C to 66°C)
  • Maximum Recommended Pressure Drop: 35 psid for water, 15 psid for steam
  • Valve Body Static Pressure Rating: ANSI Class 250
  • Maximum Control Pressure: 30 psig

Applications:

  • Hot or chilled water systems
  • 50/50 glycol solutions
  • Steam applications up to 35 psig
  • Commercial HVAC systems
  • Hydronic heating and cooling systems

The V-3000 series pneumatic actuator features a rugged die-cast aluminum housing with a synthetic rubber diaphragm, providing reliable modulating control in response to pneumatic control signals. Factory or field assembly options allow for flexible installation. The normally open configuration ensures fail-safe operation, with the valve opening upon loss of air pressure.
