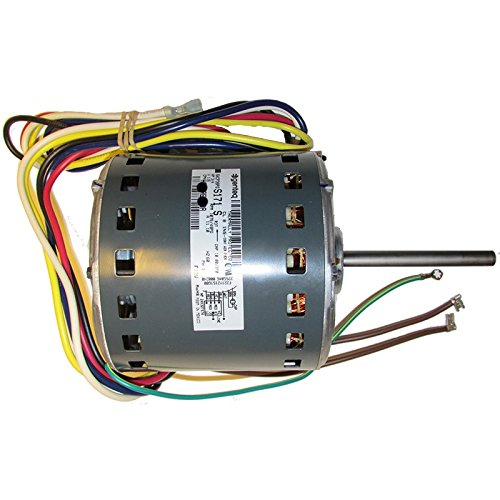

Carrier HC41SE115 1/3 HP PSC Furnace Blower Motor 4-Speed 115V 1075 RPM 48Y Frame

The Carrier HC41SE115 is a Factory Authorized Parts, OEM direct-drive furnace blower motor engineered for reliable performance in Carrier, Bryant, and Payne heating and cooling systems. Manufactured by Genteq (model 5KCP39GGB851AS), this PSC (Permanent Split Capacitor) motor delivers consistent 1075 RPM airflow across four selectable speeds.

Key Specifications:

• Horsepower: 1/3 HP
• Voltage: 115 VAC
• Frequency: 60 Hz
• Full Load Amperage: 5.3 A
• RPM: 1075
• Number of Speeds: 4
• NEMA Frame: 48Y
• Phase: Single
• Shaft Diameter: 1/2"
• Shaft Length: 4"
• Motor Diameter: 5.6"
• Rotation: Counter-Clockwise
• Enclosure: Open
• Thermally Protected: Yes
• Capacitor: 5 MFD (POC5)

What's Included:

• 1 × Blower Motor (HC41SE115)
• 1 × Installation Instructions (99TA525026)
• 5 × Wire Spade Connectors

This motor meets exact OEM design specifications for a true drop-in replacement, maintaining all original agency listings and safety standards including CSA certification. It is also cross-referenced under Genteq part number 5KCP39GGB851AS and carries the following cross-reference numbers: B14V, B405Y2785870, 4003065 000025.

Installation Tip: When installing a new blower motor, it is strongly recommended to also replace the run capacitor. Worn or weakened capacitors can reduce motor efficiency and lead to premature failure of the new motor.
