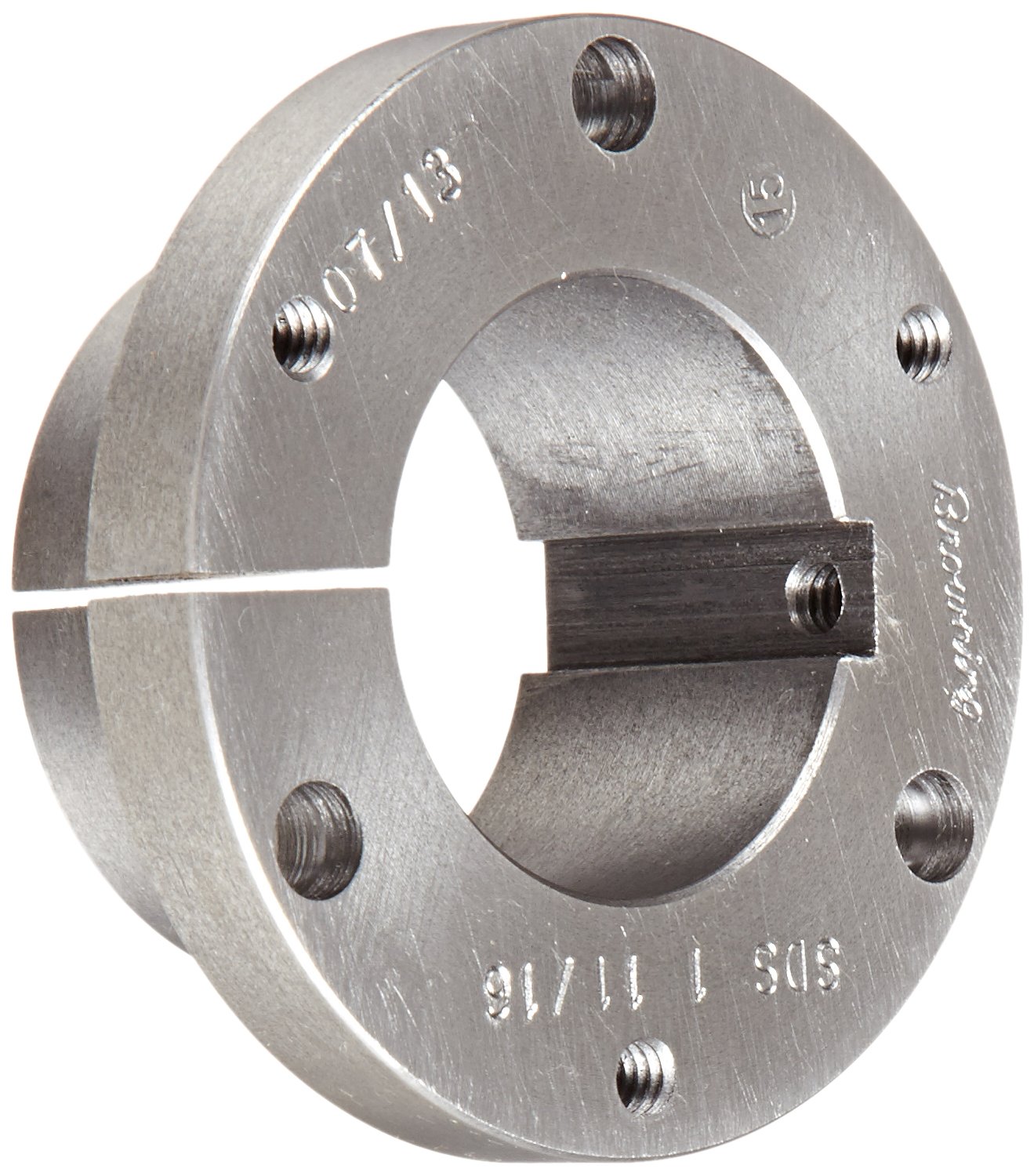

Browning SDS 1 11/16 Q-D Quick Disconnect Bushing 1-11/16 Bore 3/8 x 3/16 Keyway

The Browning SDS 1 11/16 is a Quick Disconnect (Q-D) bushing featuring a 1-11/16" (1.6875") bore and a 3/8" x 3/16" keyway, designed for use with Browning Q-D bushed sheaves, sprockets, pulleys, and other compatible power transmission components. Manufactured by Regal Rexnord, this SDS-series bushing offers a reliable and efficient solution for mounting and removing drive components without disturbing surrounding machinery.

Key Features:

• Bore Size: 1-11/16" (1.6875")
• Keyway: 3/8" x 3/16"
• Overall Diameter: 3-1/8"
• Hub Diameter: 2-1/8"
• Bolt Circle: 2.688"
• Flange Thickness: 0.45"
• Torque Rating: 5,000 lb-in
• Material: Ductile Iron (65-45-12)
• Mounting Type: Conventional
• Bore Range (SDS Series): 1/2" to 7"

Design Advantages:

• Reverse Mounting Capability: Mounts with the bushing flange toward or away from the motor or machine, providing installation flexibility and a more flush product face where needed
• Self-Locking Taper: Features a 3/4"/ft. taper on the barrel for the highest degree of mechanical locking between bushing and component
• Single Split Barrel: Simplifies installation and removal
• External Capscrew Access: Capscrews are always accessible from the outside for easy tightening and removal without disassembly of surrounding components

The Browning SDS series Q-D bushing is an industry-standard solution for power transmission assemblies, offering tool-free interchangeability and consistent performance across a wide range of industrial drive applications. Browning Item #: 1077049.
