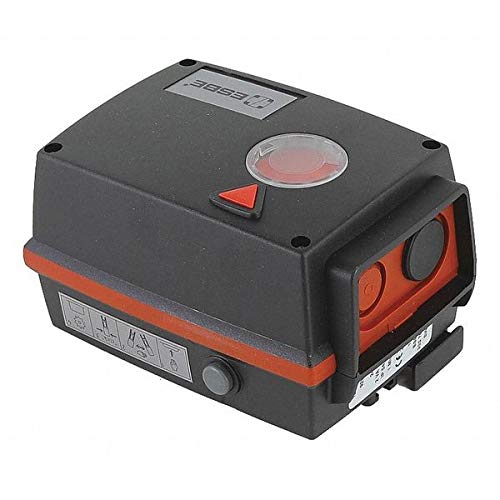

Danfoss 065F-8953 ESBE Series 92EM 3-Point Floating Motor Actuator with Auxiliary Switch 24V 50 Second

The Danfoss 065F-8953 is an ESBE 92EM Floating point actuator with auxiliary switch designed for direct mounting to ESBE rotary mixing valves in hydronic heating and cooling systems. This 24 volt electronic motor is a direct mounted actuator that rotates ESBE 3 & 4-way rotary valves for hydronic heating and cooling systems, providing additional torque compared to the Series 60 and ARA series of actuators.

Key Features:

• 50 second run time at 60 Hz (1 minute at 50 Hz) for precise valve positioning
• 135 in-lb (15 Nm) torque rating for reliable operation
• Factory set 90° rotation, adjustable between 30° and 180° with internal cams
• 3-point floating control with adjustable cam-activated auxiliary switch
• Easy manual override of motor actuator for maintenance and testing
• NEMA 13, IP 54 enclosure rating for protection against dust and moisture
• Compatible with ESBE rotary mixing valves in sizes 1/2" to 6"

Technical Specifications:

• Supply Voltage: 24V AC
• Power Consumption: 2VA
• Ambient Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Weight: 1.8 lbs (0.8 kg)
• Signal Type: Floating 3-point with auxiliary switch
• Auxiliary switch with adjustable cam position, max 2A

This actuator is ideal for hydronic heating applications requiring precise valve control and position feedback. Linkage kits are available for adapting to Viessmann, Honeywell, Centra DR/ZR, Landis & Staefa and TA VTR styles of valves.
