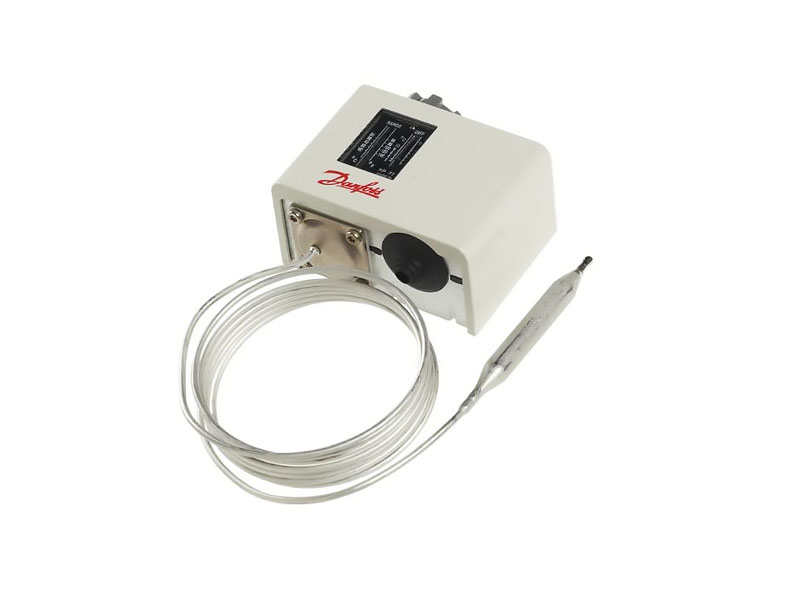

Danfoss 060L115566 KP81 Temperature Controller Thermostat 80-150°C

The Danfoss 060L115566 is a KP81 series temperature-controlled thermostat designed for industrial regulating, monitoring, and alarm systems. This temperature-operated circuit breaker provides reliable temperature control in the 80°C to 150°C (176°F to 302°F) range, making it ideal for demanding HVAC, refrigeration, and industrial process applications.

Key Features:

• Temperature range: 80°C to 150°C with adjustable differential range of 7-20°C
• SPDT (Single Pole Double Throw) contact configuration for versatile switching applications
• Remote sensor bulb with 2000mm (78.75 inch) capillary tube for flexible installation
• Manual max reset function for safety-critical applications
• Maximum sensor temperature rating of 200°C (392°F)
• IP30 enclosure rating for standard industrial environments
• High contact load capability: 16A at 400V AC1, 10A at 400V AC15
• Compact sensor size: 9.5mm diameter x 85mm length

The KP81 series thermostats can directly control single-phase AC motors up to 2kW and feature a rugged design suitable for harsh industrial environments. The device complies with EN 60947-5 electrical standards and carries multiple international approvals including UL, CSA, CE, and RoHS.
