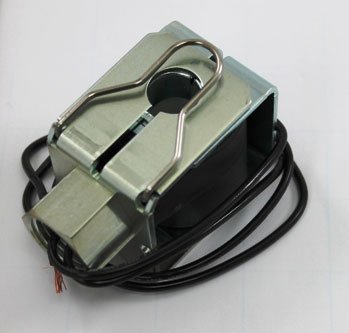

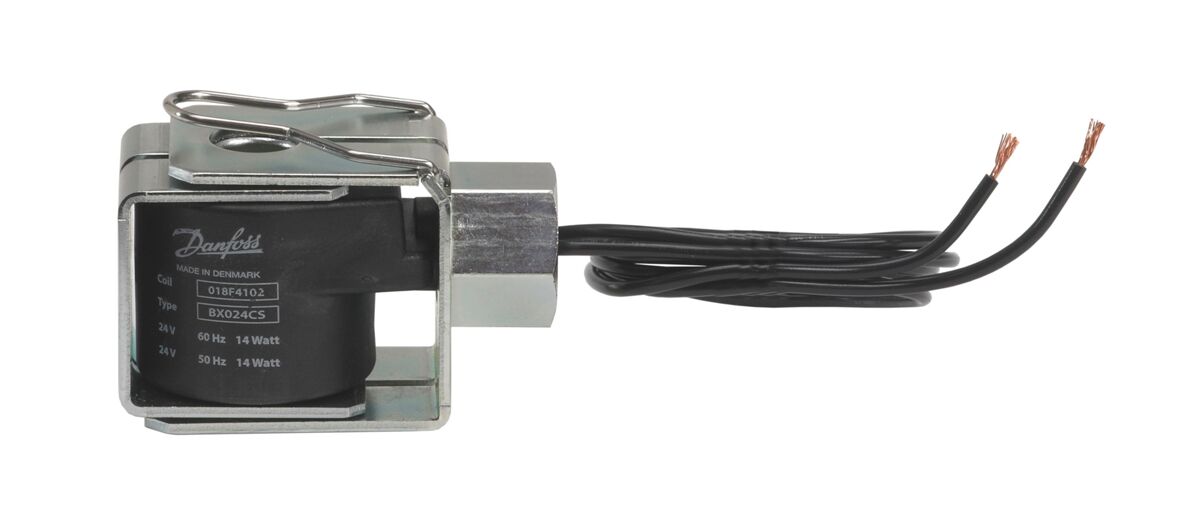

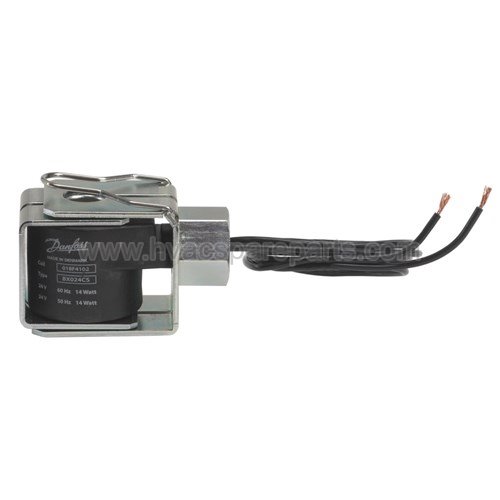

Danfoss 018F4122 Solenoid Coil BX Series 208-240VAC NEMA 4 Conduit Hub

The Danfoss 018F4122 is a BX series general purpose solenoid coil designed for use with Danfoss electric expansion and solenoid valves in refrigeration and HVAC systems. This UL-listed coil features a NEMA 4 rated conduit hub connection for reliable operation in demanding industrial environments.

Key Features:

• BX240CS coil type with 208-240VAC voltage rating for 50/60Hz applications
• 17W power consumption at 50Hz, 14W at 60Hz with pulse motor coil design
• 1/2 inch conduit hub electrical connection with NEMA 4 enclosure rating (UL50 Class 4)
• IP54 protection rating for dust and moisture resistance
• Clip-on fastening system for easy tool-free installation and removal
• 13.5mm actuator size compatible with EVR, EVRA, EVRAT, EVRS, EVRST, EVM, AKV, and EV valve series
• Operating temperature range: -40°F to 122°F (-40°C to 50°C)
• Class H insulation rated for high reliability and long service life

This coil is specifically engineered to operate in the harsh conditions typical of refrigeration systems, including high humidity and temperature fluctuations. The encapsulated design ensures long operating life even under extreme conditions. Compatible with a wide range of Danfoss solenoid valves used in liquid lines, suction lines, and hot gas applications. UL approval file MH29671.
